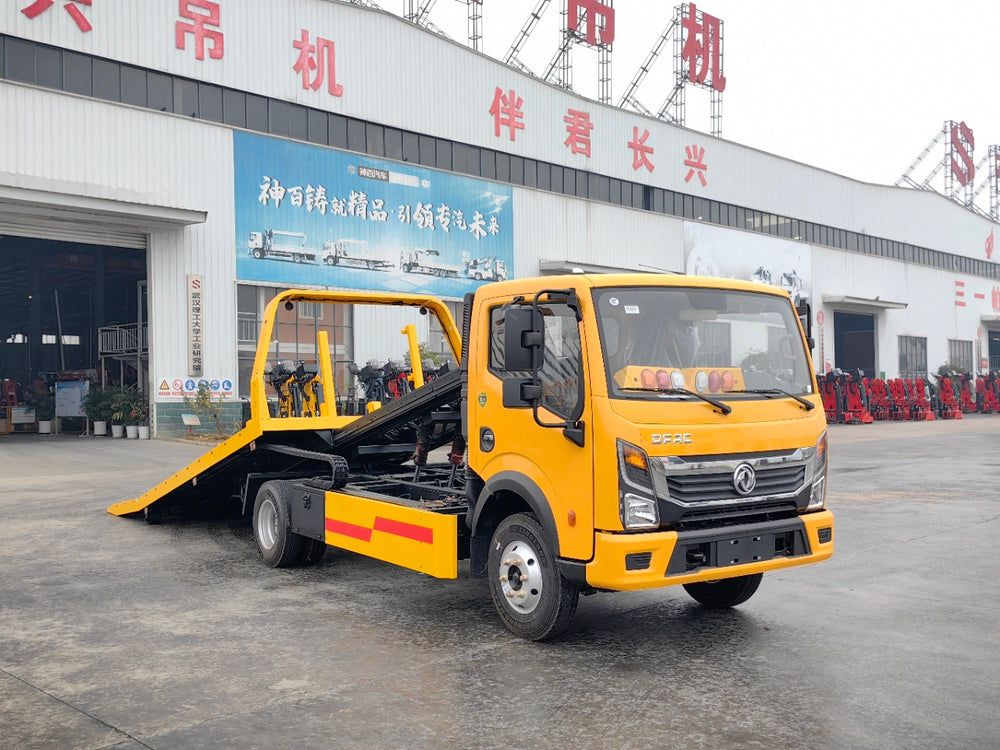

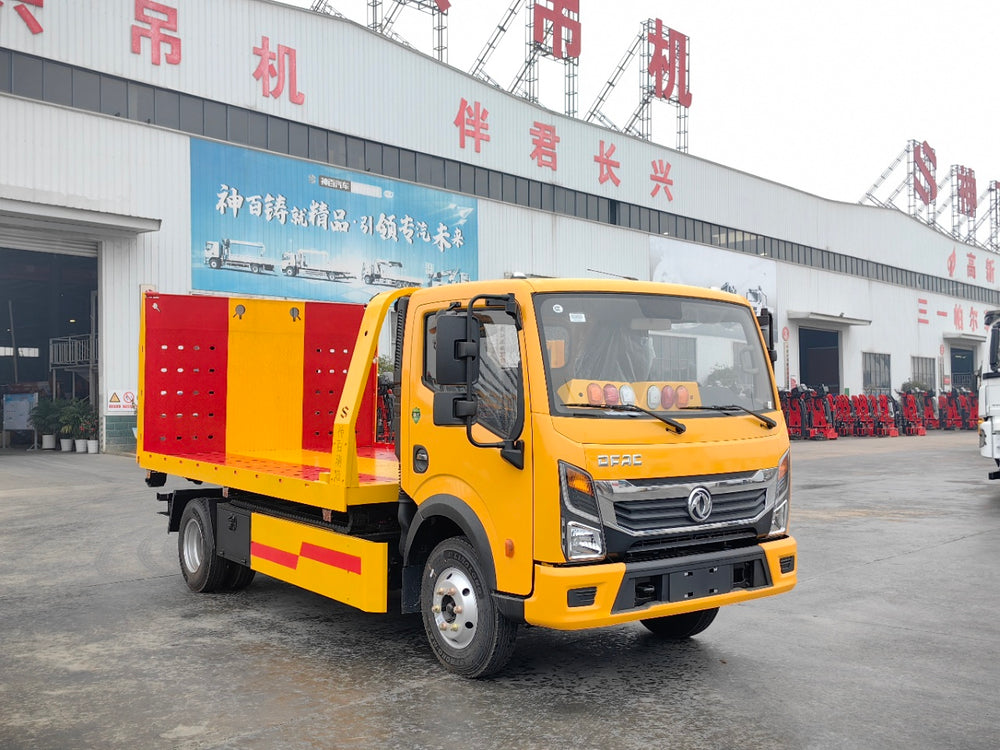

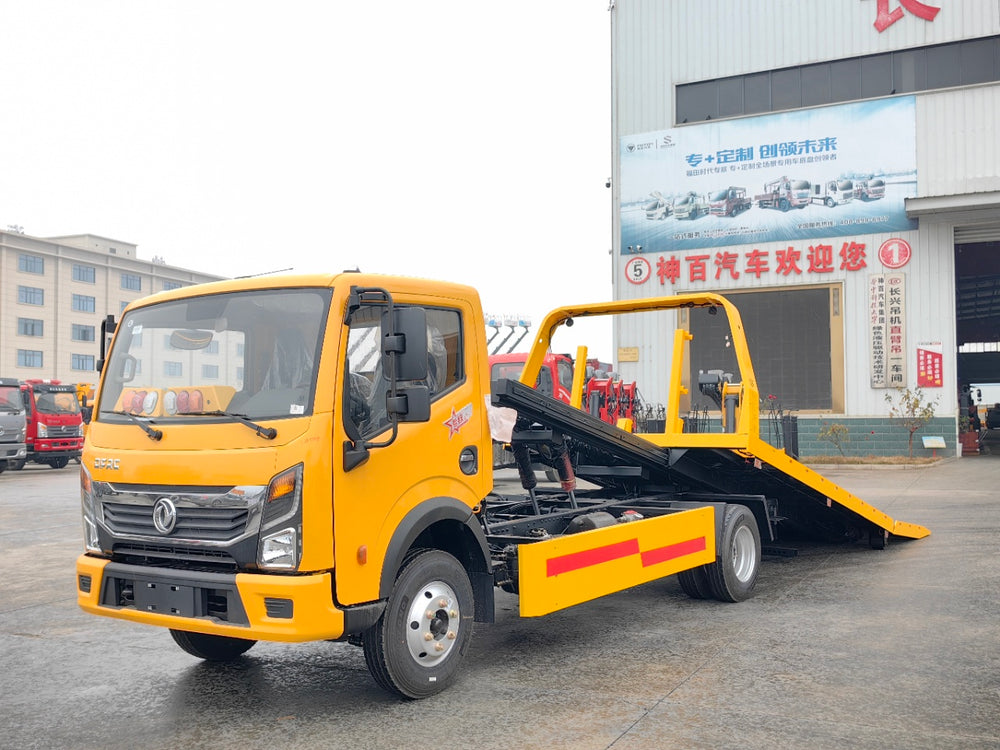

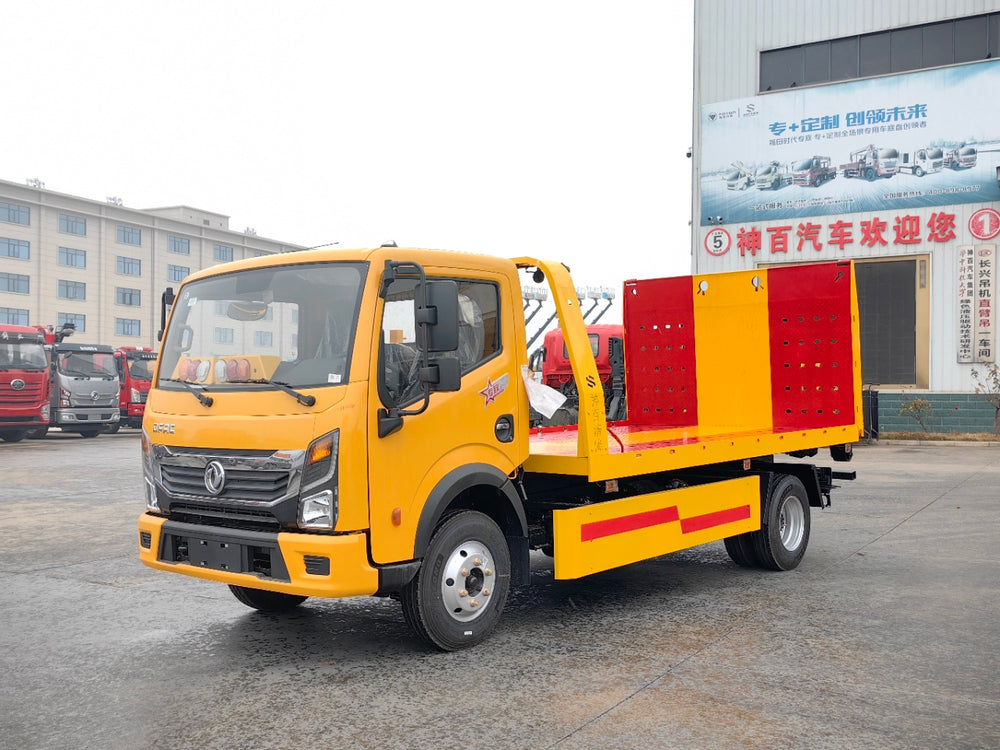

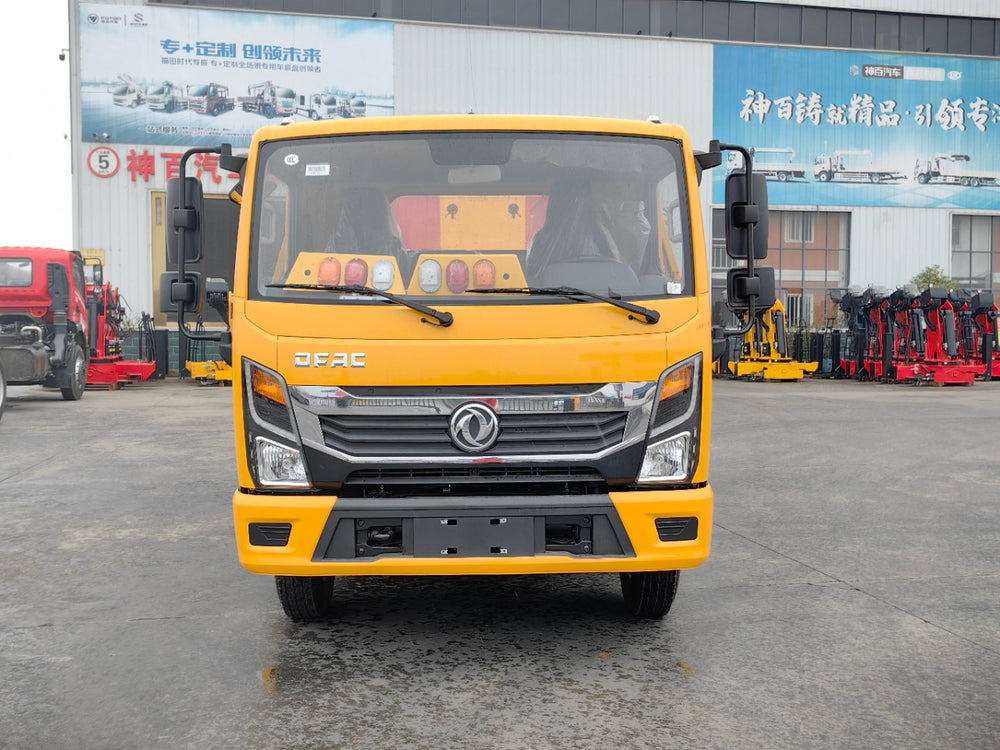

DongFeng 7T Wrecker Truck

1 / 11

Parameter	Value
Chassis Basic Info
Chassis Model	EQ1045SJ3CDF
Chassis Configuration
Cab Model	Dongfeng New Xingyun Wide-body 1900 Cab
Engine	Yunnei 160HP Engine (2.5L Displacement)
Gearbox	8-speed Gearbox
Wheelbase	3600mm
Frame	190 Double-layer Girder
Tires	700 Steel Wire Tires
Rear Axle	6-ton Load-bearing Rear Axle
Cab Interior & Equipment	Electric Windows, Remote Key, Multi-function Steering Wheel, Cruise Control, Original Factory Heating & Cooling Air Conditioner, Air Brake, Headlight Adjustment
Upper Body Configuration
Upper Body Type	Heavy-duty 7T One-tow-two Upper Body

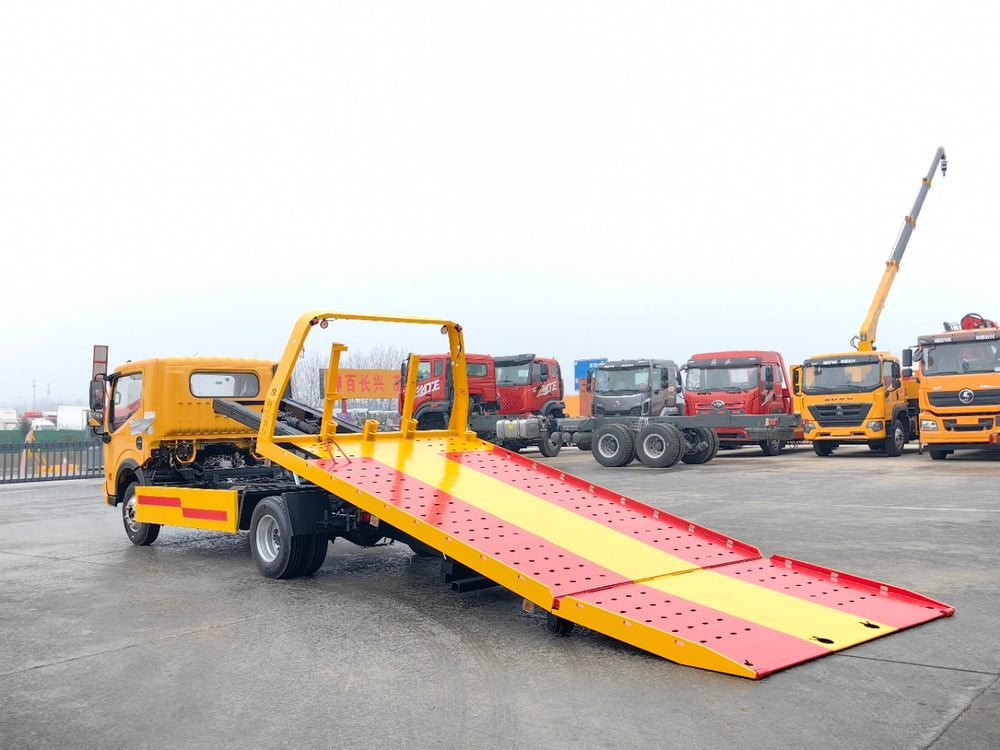

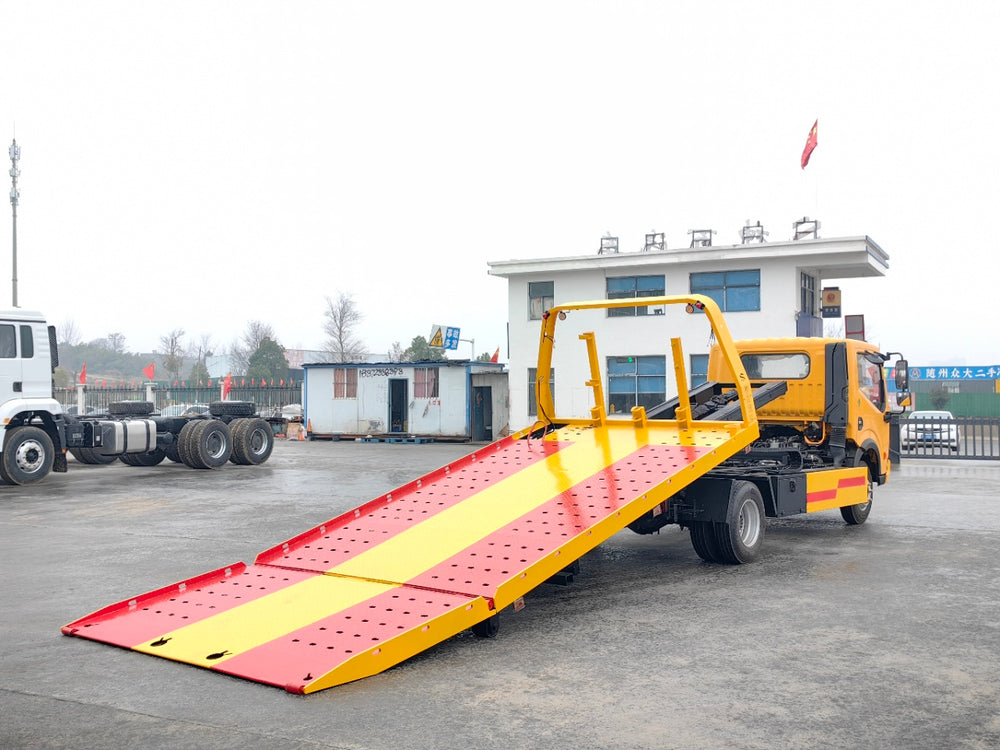

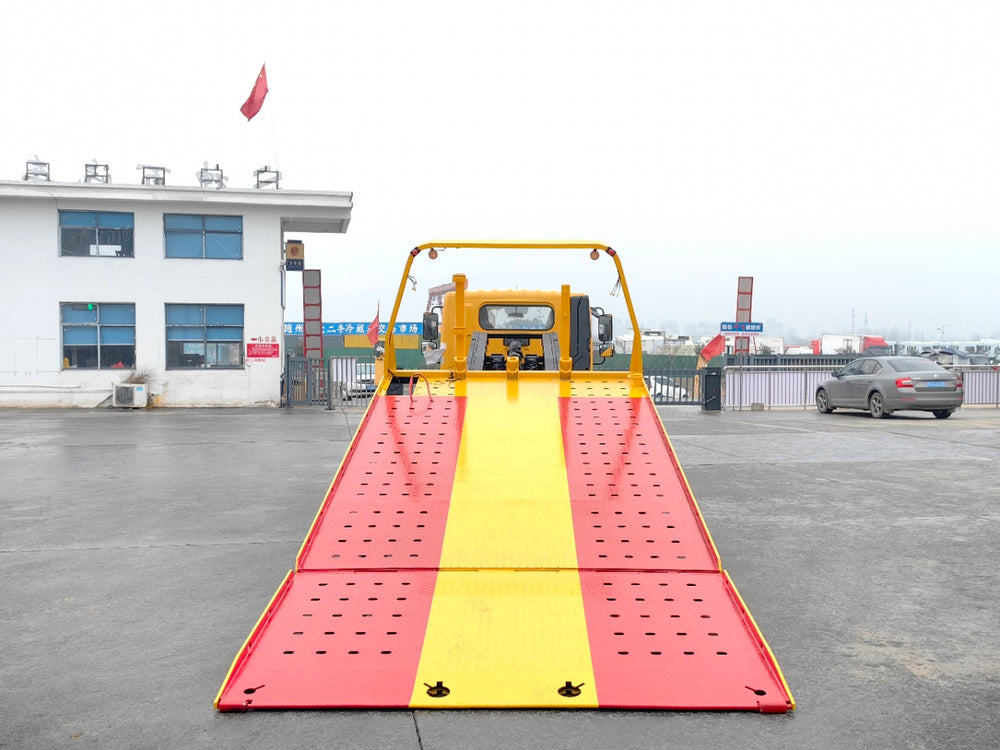

Flatbed Dimensions	Overall Length 5.6m; Width 2.3m-2.55m (customizable on demand)
Frame Border	14mm Thick Solid Steel Plate Frame with Cut Holes
Flatbed Floor	5mm Thick Checkered Plate, anti-slip & wear-resistant
Rear Turnover Mechanism	Rear Through-shaft Hydraulic Turnover
Slideway	10mm Thick Manganese Steel Chute (reinforced with 8mm steel plate outside the flared opening)
Body Structure	Grid welding & densified triangular diagonal bracing under the flatbed
Hydraulic System	110-type flatbed telescopic oil cylinder, 110-type lifting oil cylinder
Winch	Standard 4-ton Winch (with 21m steel wire rope)
Rear Tow Arm	4-ton Rear Tow Arm
Operation System	Bilateral Linkage Operation System
On-board Accessories
Lighting Accessories	2 Rear Working Lights, 1 Set of Gantry Side Lights
Storage & Tools	1 Tool Box, 1 Crowbar
Fixing Accessories	4 High-quality Binding Belts, 1 Pair of Triangle Wheel Chocks, 1 Pair of Square Wheel Holding Tubes
Auxiliary Tools	1 Pair of Auxiliary Trolleys, 1 Pair of L-shaped Forks
