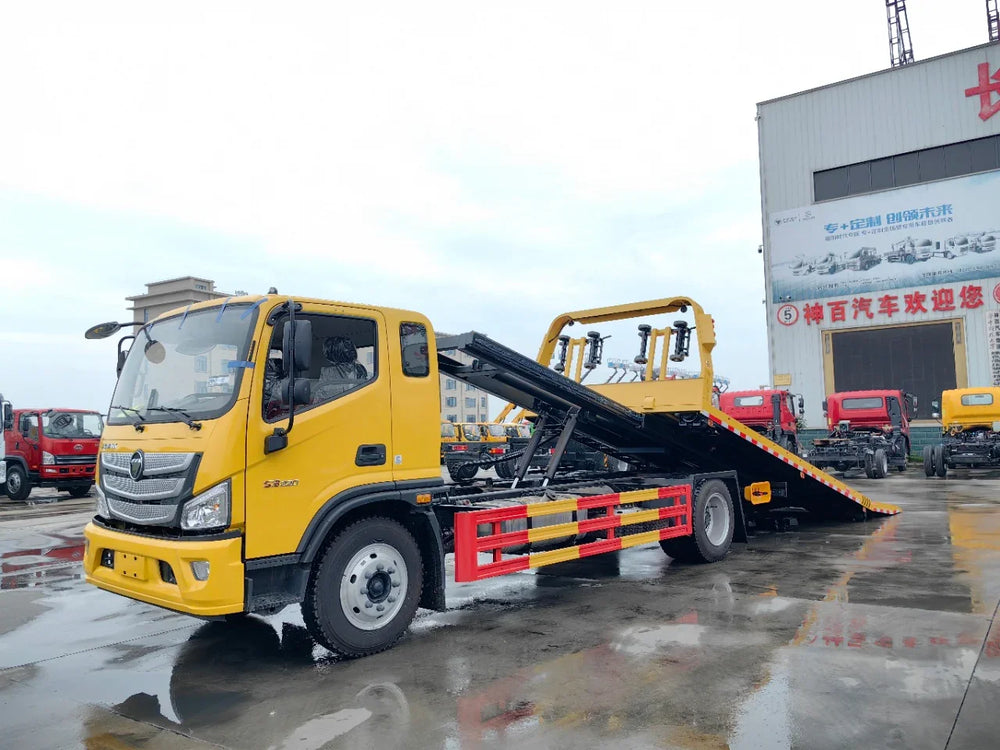

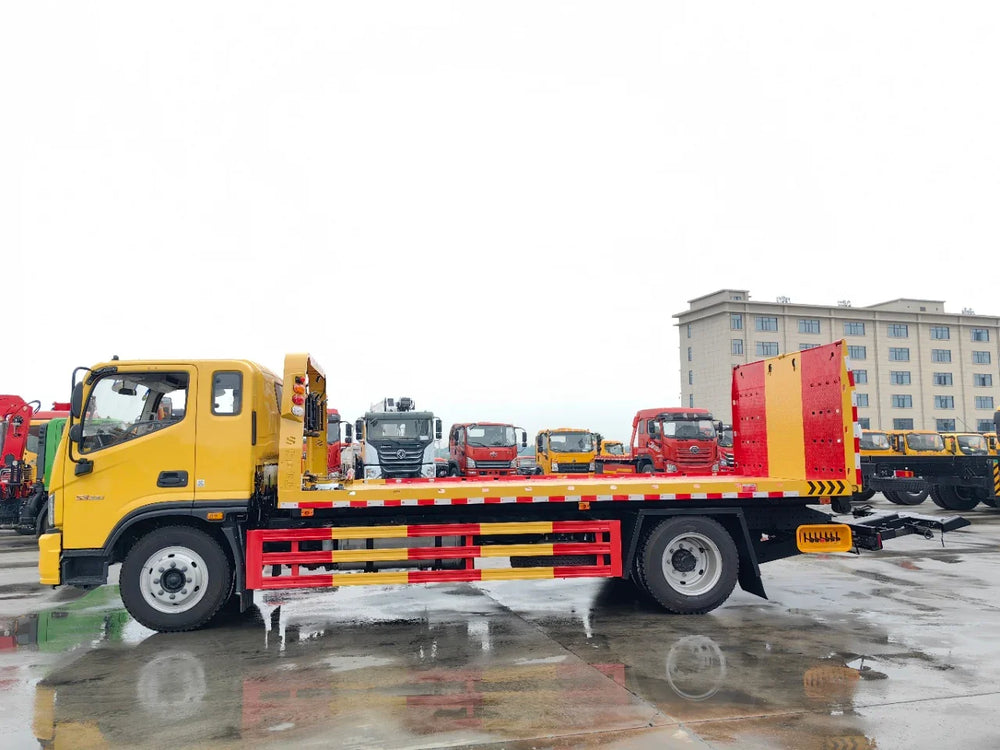

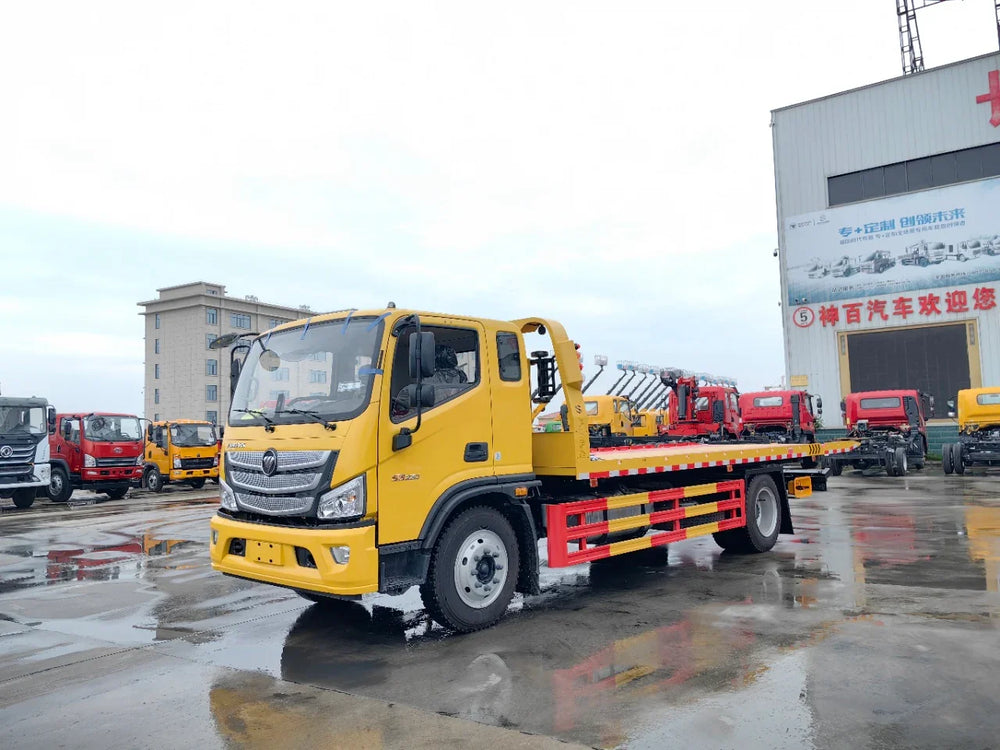

FOTON 6T Wrecker Truck

1 / 3

Configuration Item	Specification
1. Chassis Configuration
Cab Type	Foton Aumark crew cab with forward-tilting function
Wheelbase	4700mm
Engine	Cummins 220 horsepower engine
Gearbox	Shaanxi Fast 8-speed gearbox
Tires	8.25R20 tires
Front Axle	4.6T front axle
Rear Axle	9T rear axle with 4.875 speed ratio
Leaf Spring Quantity	3/10+8 leaf springs
Gross Vehicle Weight	14055kg
Fuel Tank	200L aluminum alloy fuel tank
Standard Factory Components	Original factory power take-off (PTO), original factory 3-layer through beam
Steering Wheel	Multi-function steering wheel
Instrument Cluster	LCD instrument cluster
Other Configurations	The rest are in accordance with the standard chassis configuration
2. Upper Mounting Configuration
Upper Mounting Type	One-tow-two upper mounting structure
Manufacturing Process	Sunken upper mounting process (to lower the center of gravity of the flatbed)
Flatbed Dimensions	Total length: approx. 6.5m, width: 2.55m
Tail Flip Length	1.2m tail flip section
Flatbed Material	Made of 5mm wear-resistant checkered plate
Frame	14mm solid steel plate frame with cut holes
Tail Hinges	Tail through-shaft detachable flip hinges
Slide Rails	10mm manganese steel slide rails (reinforced with 8mm steel plate bound outside the flared opening)
Under-Plate Reinforcement	Dense grid-shaped reinforcement under the plate, dense triangular diagonal bracing
Winch	6-ton winch
Rear Support Arm	6-ton rear support arm
Hydraulic Valve	Zhongmei hydraulic multi-way valve
Oil Cylinders	110-type flatbed telescopic oil cylinder, 110-type lifting oil cylinder
3. On-board Accessories
Gantry Side Lights	1 set of gantry side lights
Rear LED Work Lights	2 rear LED work lights
Lashing Straps	4 lashing straps
Triangular Tire Stoppers	1 pair of triangular tire stoppers
Square Tire Holding Tubes	1 pair of square tire holding tubes
L-shaped Forks	1 pair of L-shaped forks
Tool Box	1 tool box
