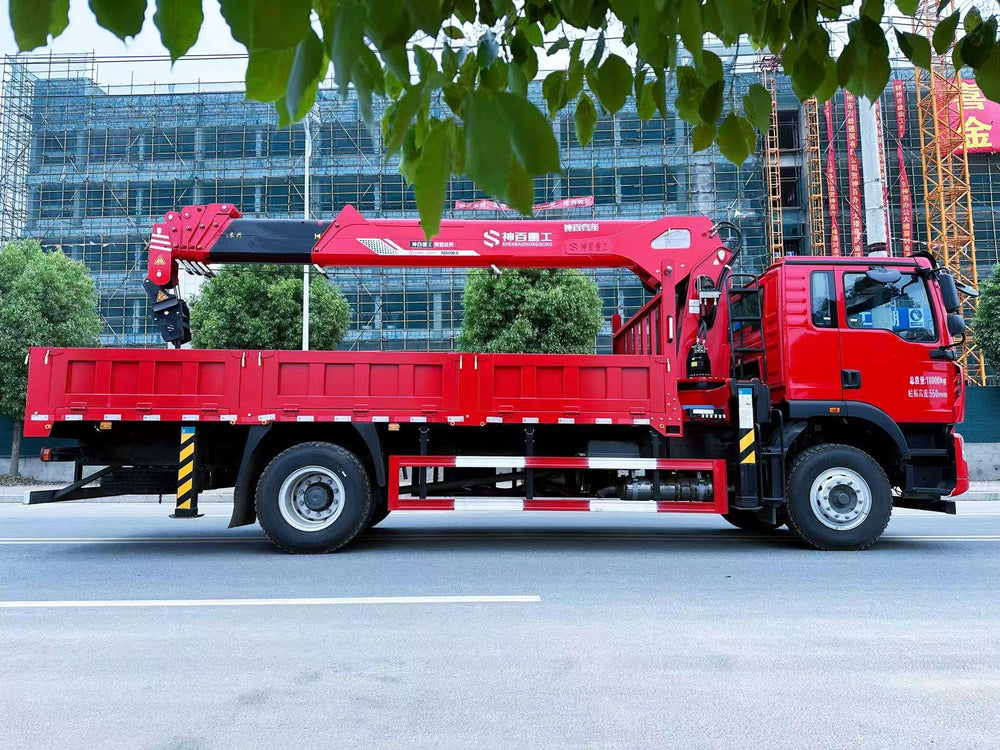

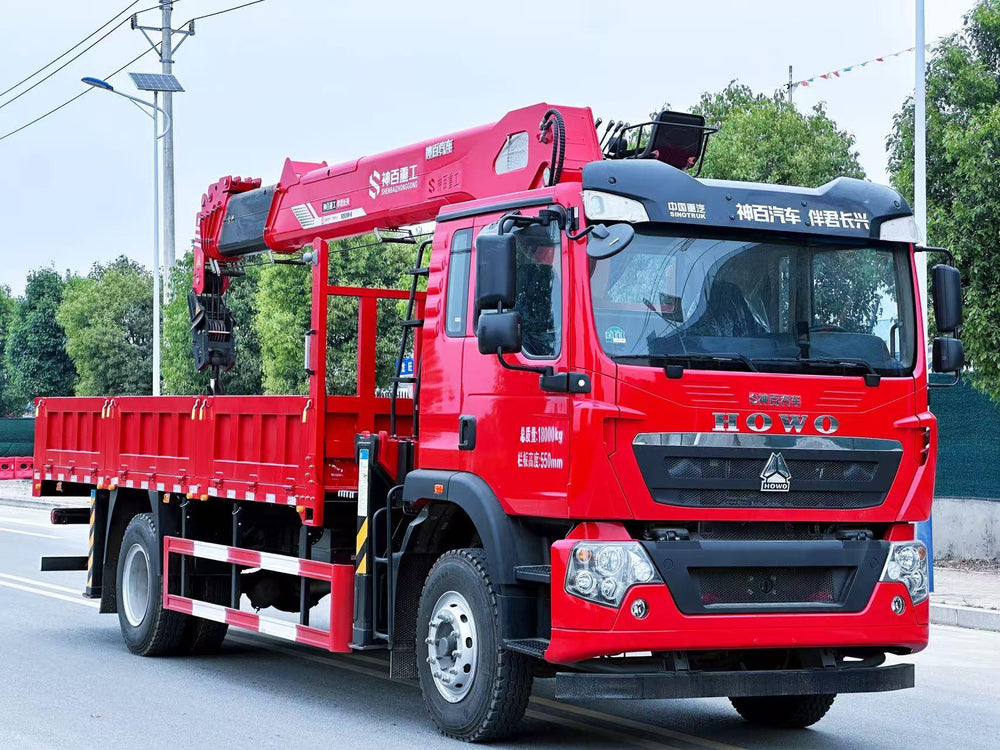

HOWO 4×2 8T Telescopic Boom Crane

1 / 2

Parameter	Specification
Engine Model & Specification	Weichai WP4.6NQ240E62, 240 Horsepower, 4.58L Displacement
Wheelbase	5000mm
Axle Ratio	5.29 (4.63 optional)
Gearbox	HW95508STC2 HOWO 8-speed Gearbox with Synchronizer
Power Take-off (PTO)	HW45ZC Flange-type PTO, Cable-operated PTO
Front Axle	7-ton SINOTRUK Reinforced Front Axle
Rear Axle	13-ton SINOTRUK Reinforced Engineering Version Rear Axle
Frame Structure	Full 3-layer Frame (8+4+4/300)
Leaf Spring Configuration	10/9+8 Standard Multi-leaf Springs for Front/Rear Axles
Tire Specification	10.00R20 Tires, Mixed Pattern, 18PR
Cab Model	HOWO TX-D Extended Cab (Semi-cab)
Steering Wheel	Multi-functional Steering Wheel
Rearview Mirrors	Electrically Adjustable + Heated Rearview Mirrors
Seats	Main Driver Airbag Seat + Passenger Simple-type Seat, Middle Seat in Cab
Cab Suspension	Front and Rear Spring Shock Absorption for Cab, 4-point Cab Suspension
Air Intake System	Highway Version Air Intake System
Speed Limit	89km/h
Braking System	ABS (4S/4M)
Central Control Screen	10.1-inch Full HD LCD Central Control Screen (MP5)
Bumper	Full Metal Middle-position Bumper
Fuel Tank	200L Fuel Tank
Telematics System	SINOTRUK Intelligent Connect D Version
Power Switch	Mechanical Power Switch
Battery	120AH Battery
Core Advantage - Powertrain Matching	Integrated development and matching of engine, gearbox and axle, with stronger whole vehicle adaptability
Core Advantage - Cab Safety	Original German MAN Main Body Cab, 4-point suspension with world-leading collapse technology, which can effectively protect the life safety of drivers and passengers in emergency situations
Core Advantage - Driving Comfort	Main driver adopts popular aviation airbag seat with multi-directional adjustment and lumbar support, humanized seat belt design, providing more comfortable driving experience
Core Advantage - Torsion Resistance	Engineering vehicle leaf springs and four saddle bolts, with the best torsion resistance in the industry under complex road conditions
Core Advantage - Load Capacity	13-ton rear axle with speed reduction and torque increase, which can easily handle various complex road conditions
Crane Specification	Changxing 8-ton 6-section Arm Crane, Boom Length 20 Meters
Crane Operation Mode	Upper Operation, Dual Slewing, Dual-stage Outriggers
Crane Accessories	With Radiator, Automatic Hook Retraction
Cargo Box Specification	5.9-meter Engineering Cargo Box, 3mm Side Plate + 5mm Bottom Plate, with Full Auxiliary Beam
