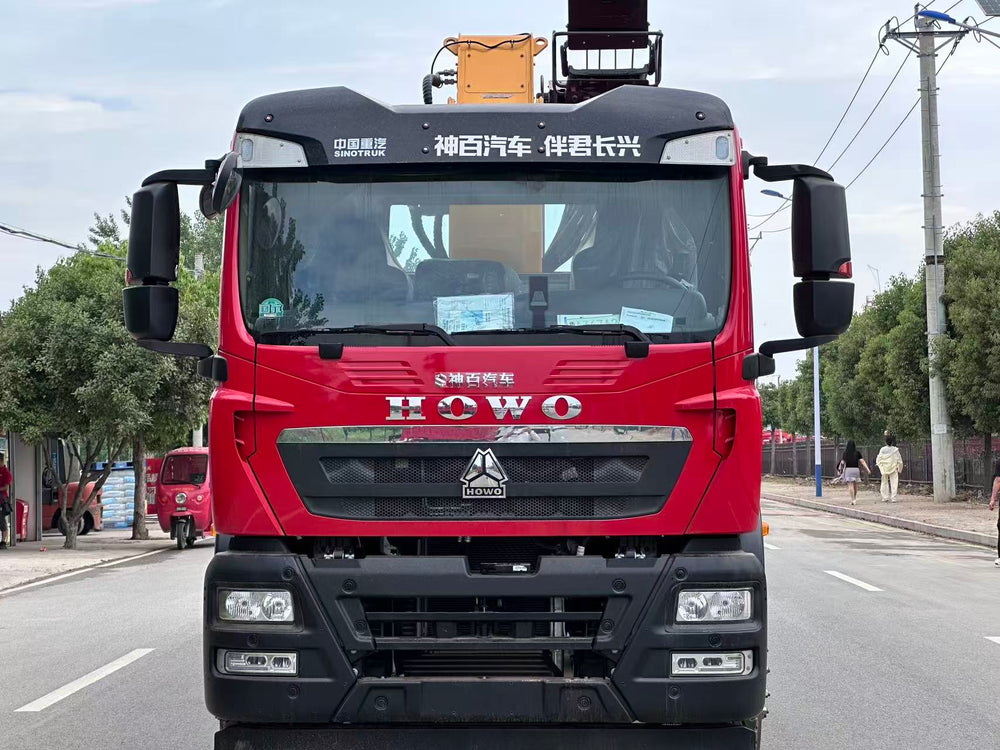

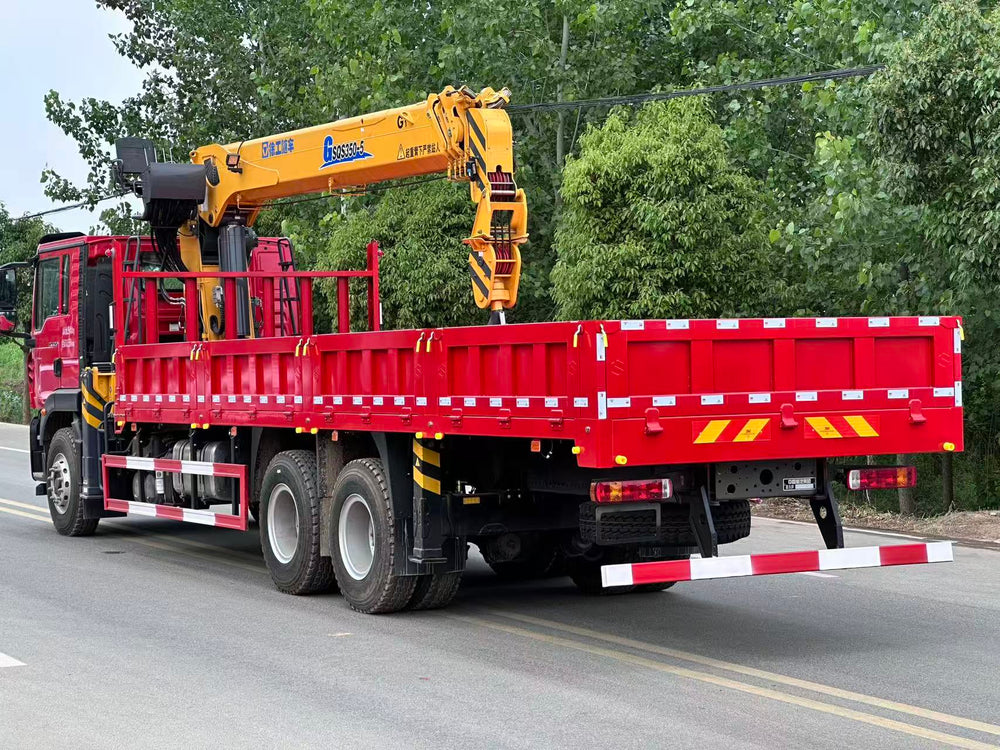

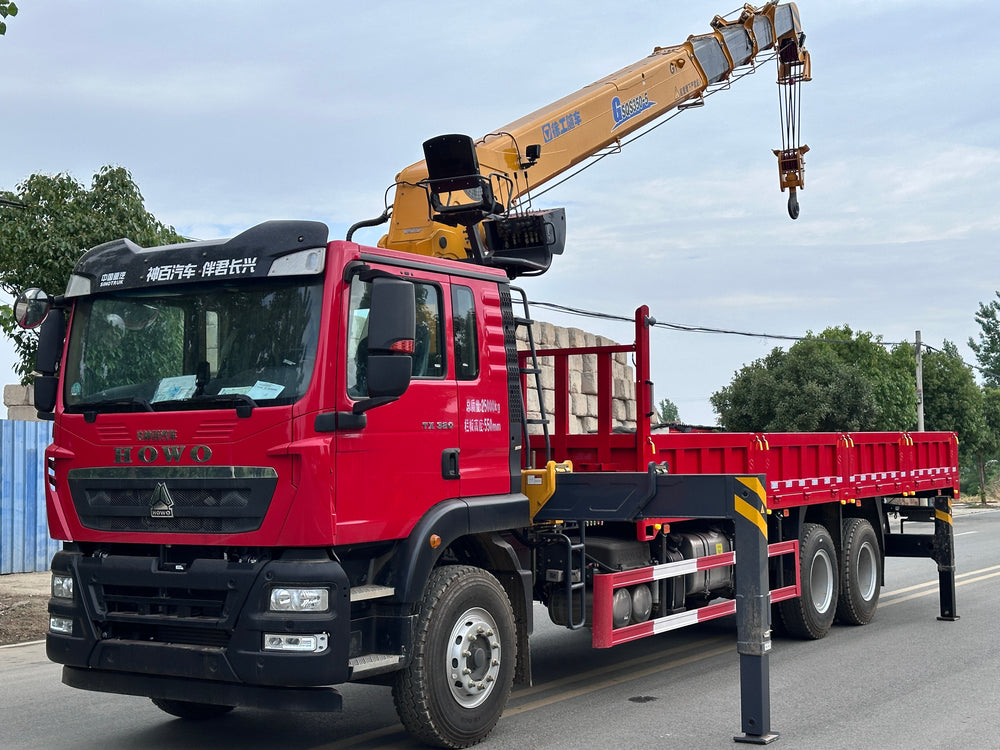

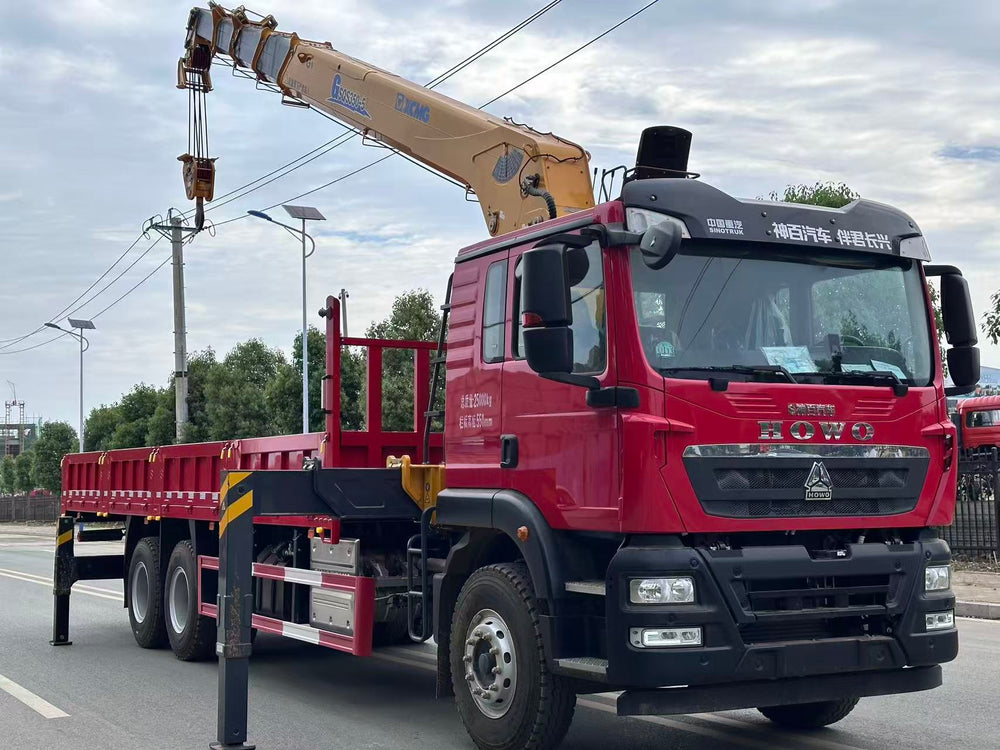

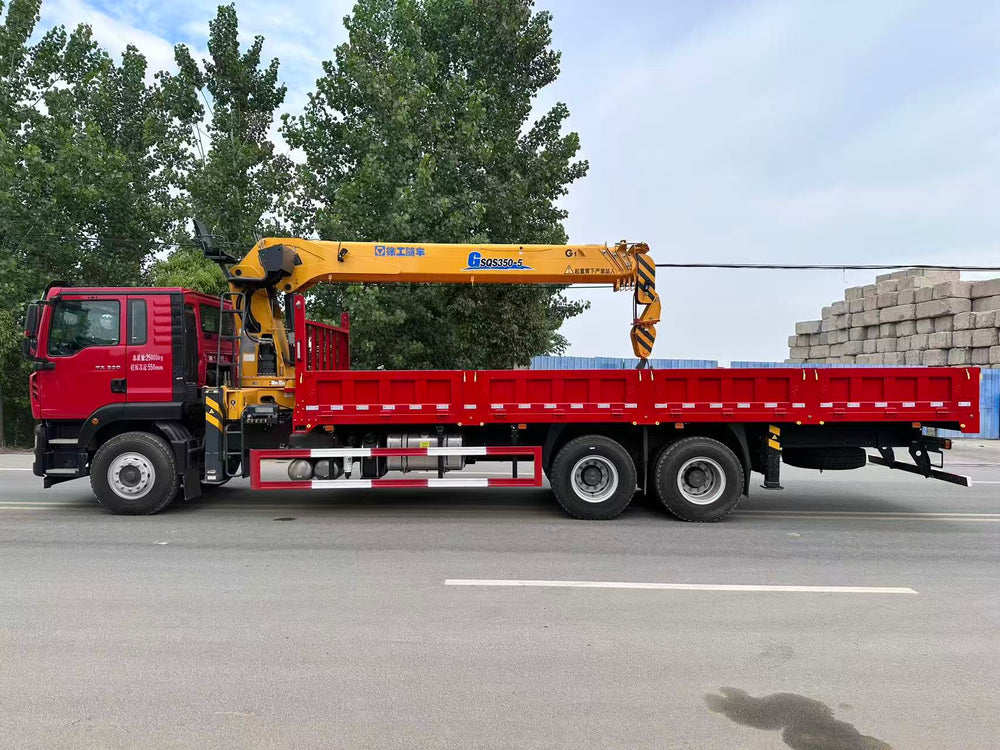

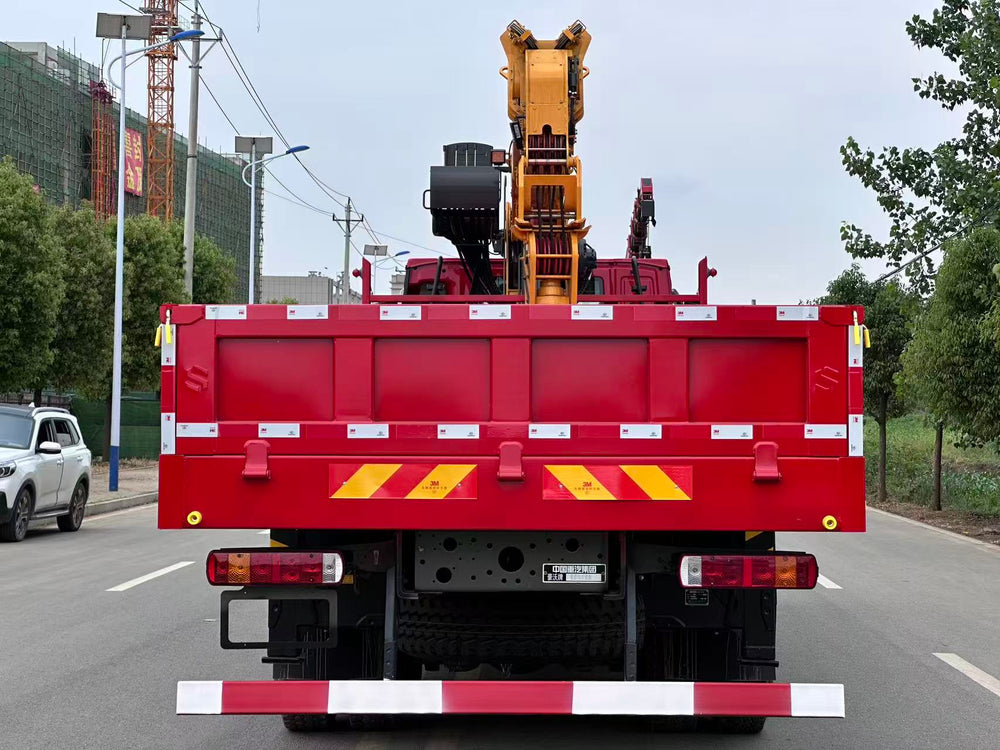

HOWO 6×4 14T Telescopic Boom Crane

1 / 7

Item	Specification
Engine	Weichai WP7H320E62, 320 HP, 6.8L Displacement
Wheelbase	5800 + 1350 mm
Final Drive Ratio	5.29 (Optional: 4.63 / 4.11)
Transmission & PTO	HW13709XSTC2 9-speed Synchronized Gearbox + HW70 Flange-type Power Take-off (PTO)
Front & Rear Axles	HOWO Reinforced Axles, 7.5t Front / 13t Rear
Chassis Frame	3-layer Reinforced Frame (8+5+5/300)
Leaf Spring	10 pcs (Front) / 12 pcs (Rear)
Tires	11.00R20, Mixed Tread, 18PR

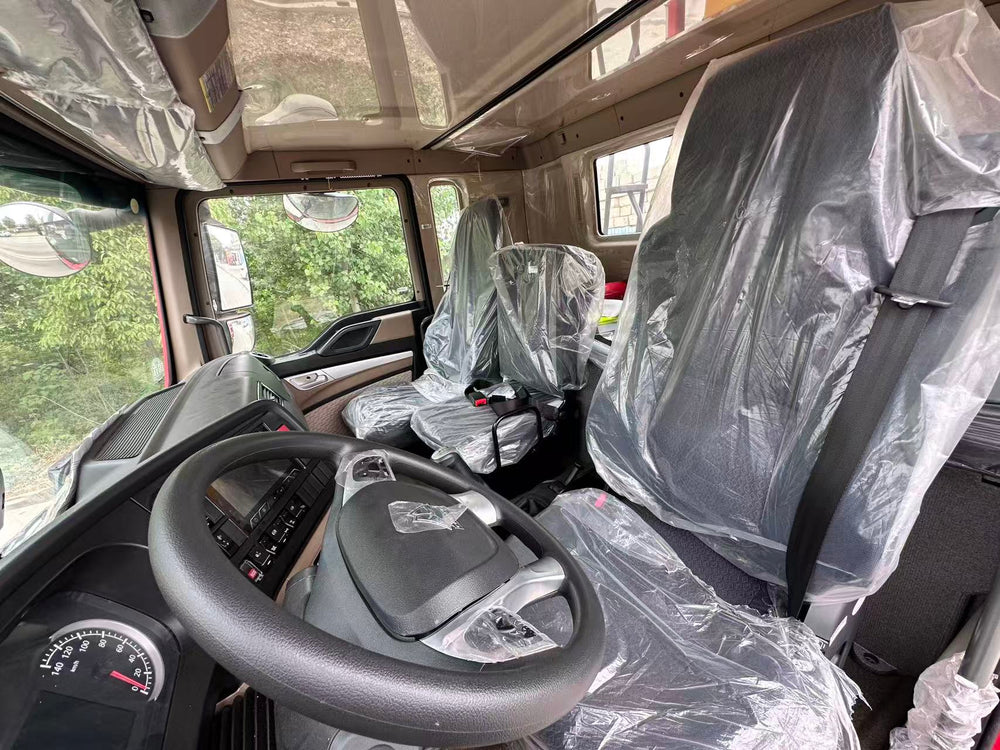

Cab	HOWO TX-J Short Cab, 4-point Suspended Collapsible Structure, German MAN Core Technology
Seats	Multi-adjustable Main Airbag Seat with Lumbar Support, Auxiliary Simple Seat, Middle Cab Seat
Control & Comfort	Multi-function Steering Wheel, Electric Adjust & Heated Rearview Mirrors
Safety Configuration	ABS (4S/4M), Full-metal High-position Bumper, U-shaped Exhaust System
Performance Parameters	Max Speed 89km/h, Electric-manual Integrated Lifting, Cable-type PTO
Auxiliary Configuration	300L Aluminum Alloy Fuel Tank, 165AH Storage Battery, CNHTC Intelligent Tongtong B Version
Core Advantages	Integrated Engine-Transmission-Axle Design for Optimal Vehicle Matching; Advanced Crash Cab Technology for Occupant Safety; Superior Torsion Resistance & Body Stability Under Heavy Load; 3 Differential Locks on Rear Axle for Complex Road Adaptability
Superstructure - Crane	XCMG G-series 14t 5-section Boom Crane, Max Lifting Height 21.5m, Max Working Radius 19.5m
Crane Features	Top Operation Mode, Dual Pumps & Dual Slewing, 2-stage Outriggers, Built-in Radiator, Automatic Hook Retraction
Cargo Box	8.4m 3-beam 5-crossmember Engineering Cargo Box with Reinforced Auxiliary Beam
