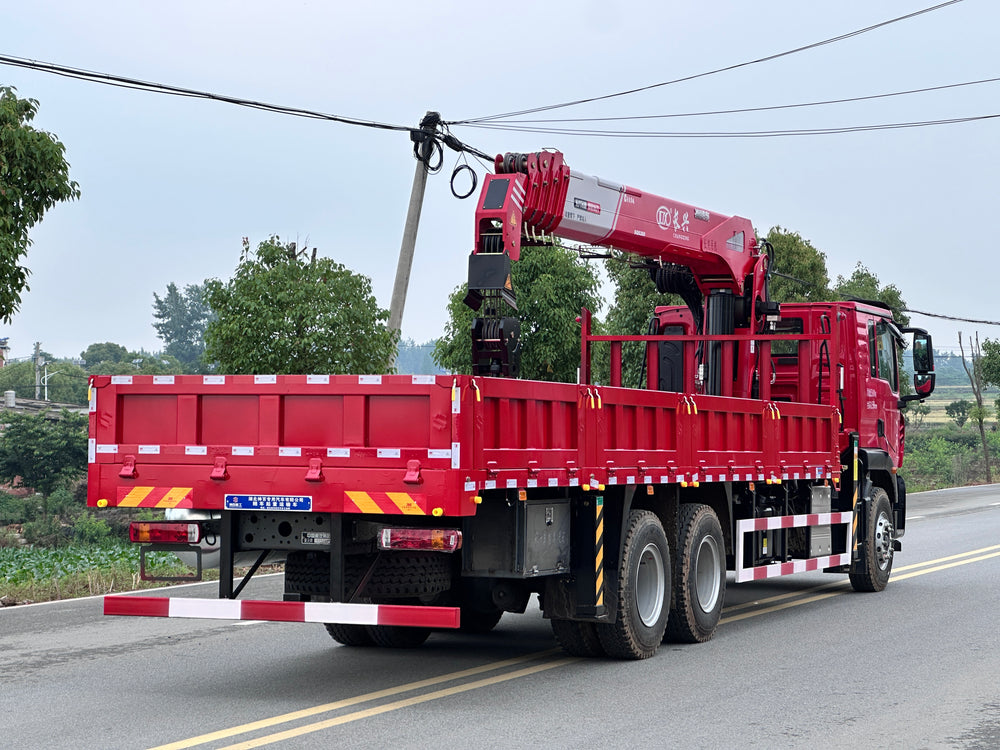

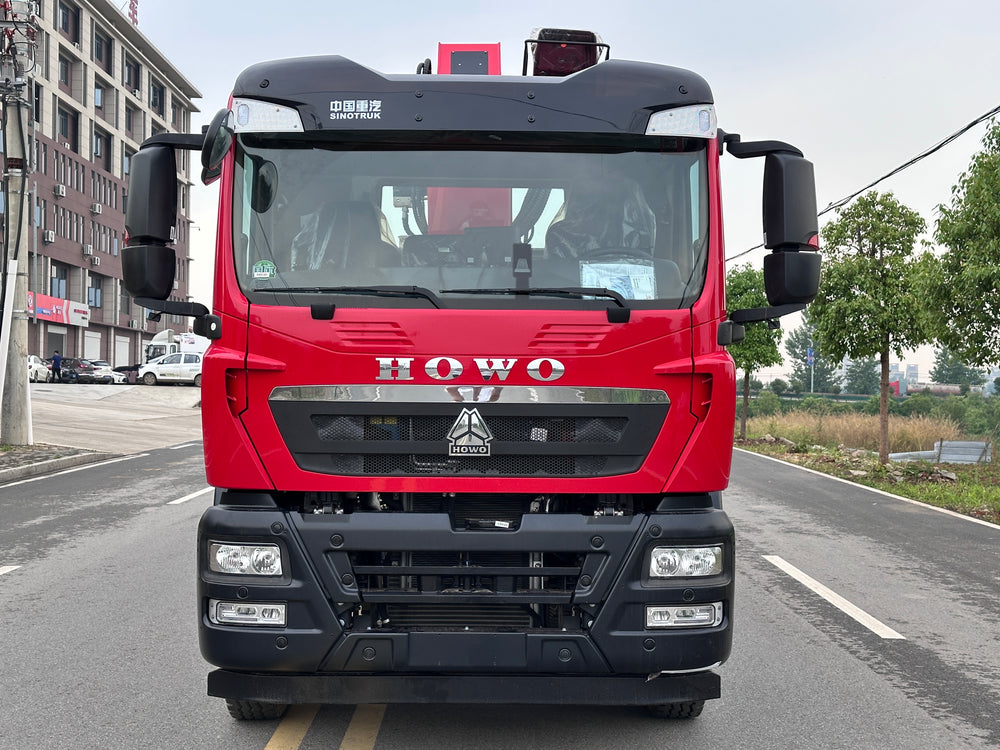

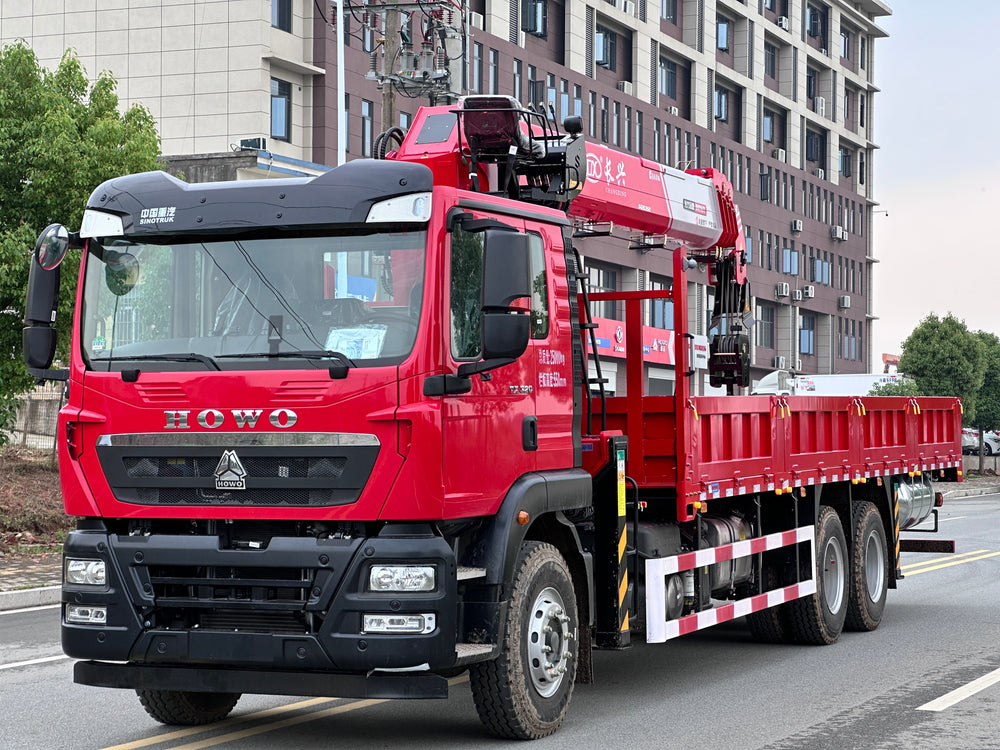

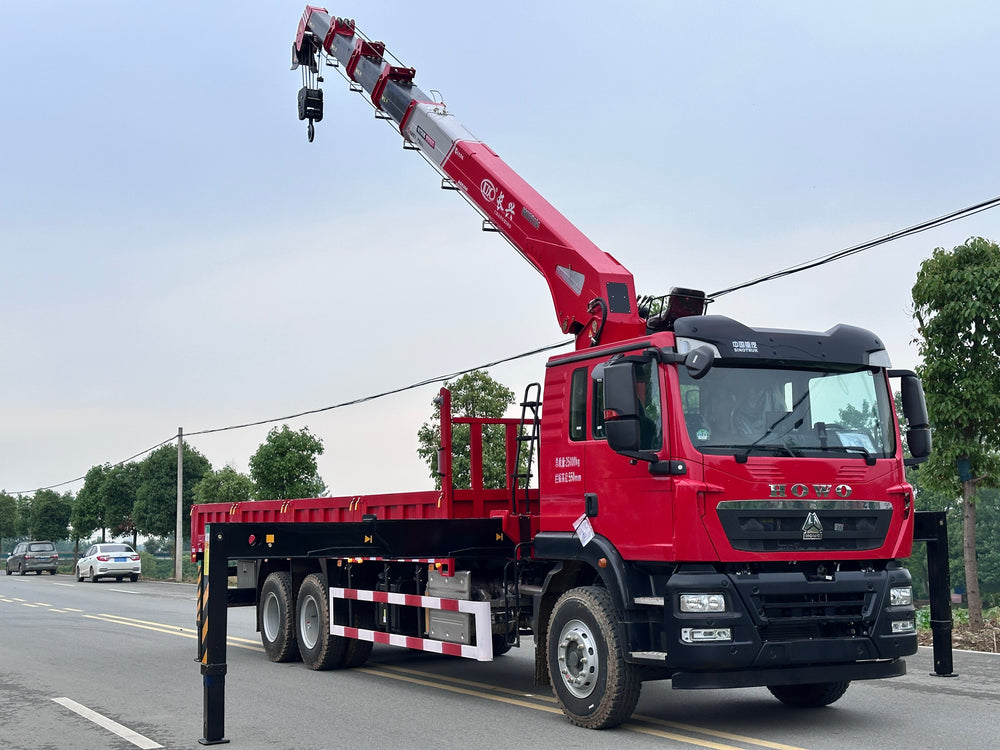

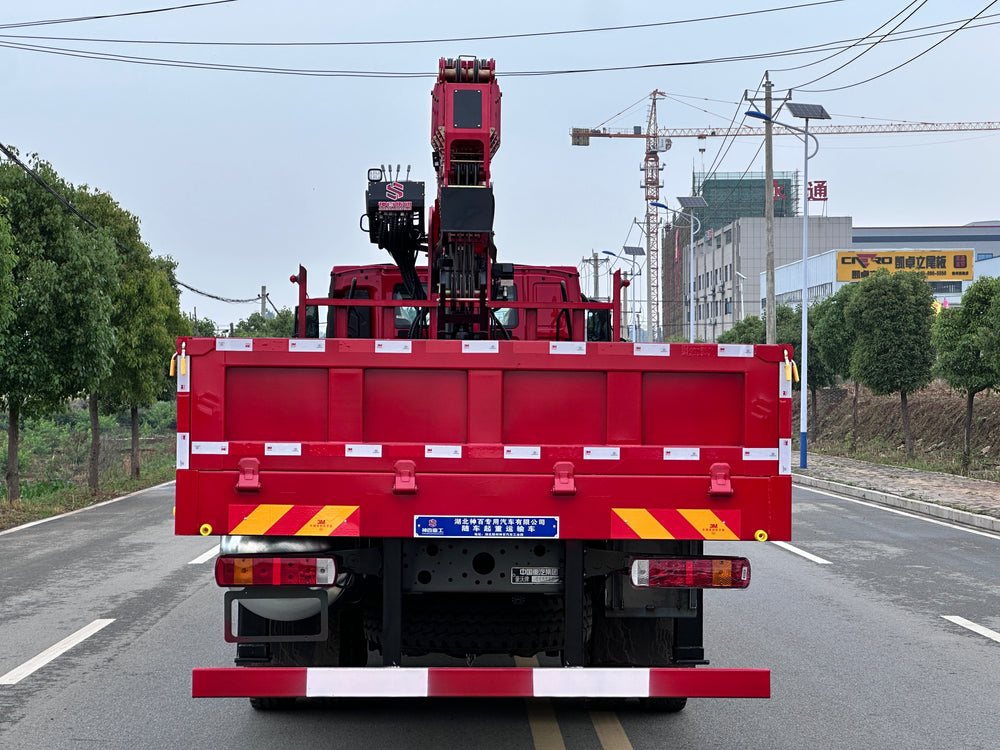

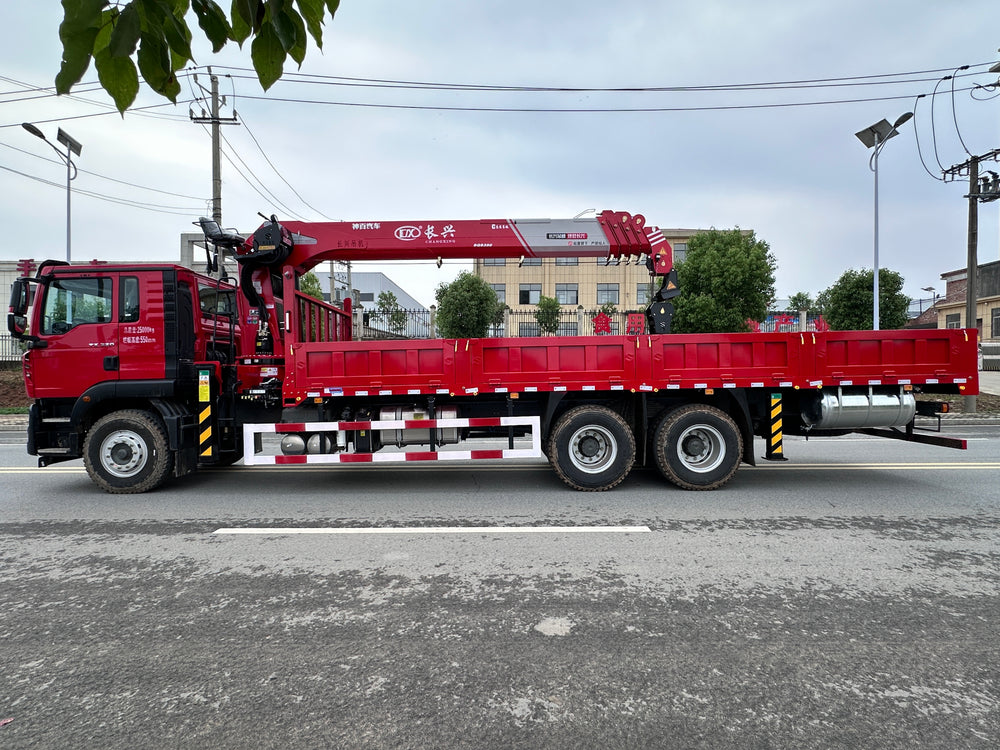

HOWO 6×4 CX14T Telescopic Boom Crane

1 / 6

Request a Quote Now

Item	Specification
Engine	Weichai WP7H320E62, 320HP, 7.0L displacement, top power for 8x4 models
Wheelbase	5800+1350mm
Final Drive Ratio	5.29 (Optional:4.63/4.11)
Transmission & PTO	HW13709XSTC2 9-speed synchromesh gearbox + HW70 flange-type PTO
Front & Rear Axle	Reinforced HOWO axles:7.5t front /13t rear
Frame	3-layer reinforced frame (8+5+5/300)
Leaf Spring	10 pieces (front), 12 pieces (rear)
Tire	11.00R20, mixed tread,18PR
Cab & Interior	HOWO TX5 TX-J short cab; multi-function steering wheel; electric adjustable & heated rearview mirror; main air suspension seat + auxiliary basic seat; middle cab seat
Chassis Accessories	Max speed 89km/h; U-type exhaust system; ABS(4S/4M); full-metal high bumper; electric-manual integrated lifting; 300L aluminum fuel tank; cable-type PTO; CNHTC Intelligent B Version; 165AH storage battery
Core Advantages	Integrated engine-transmission-axle design; 4-point suspended collapsible German MAN safety cab; multi-adjustable air seat with lumbar support; reinforced leaf springs & four U-bolts; V-type thrust rod; 3 differential locks on 13t rear axle
Crane Superstructure	Changxing 14t 5-section crane, working radius 19.9m, lifting height 22m; dual pump confluence, dual slewing, double composite front outriggers, auxiliary & cross beam, synchronous extension, radiator
Cargo Box	8.4m edge-three-bottom-five cross-member engineering cargo compartment
