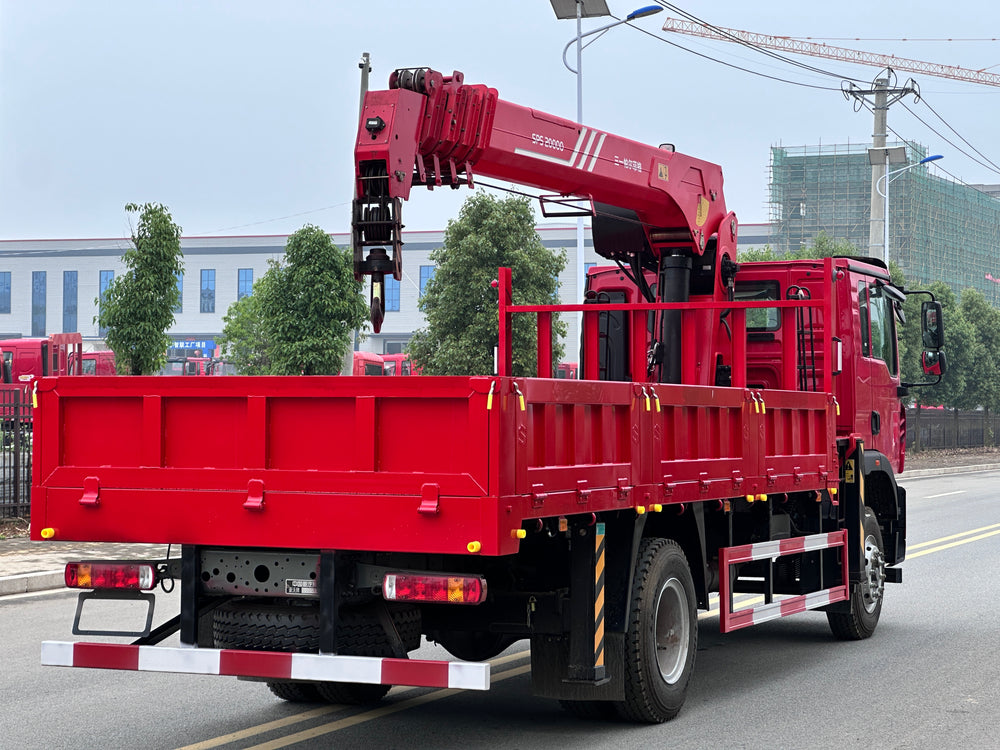

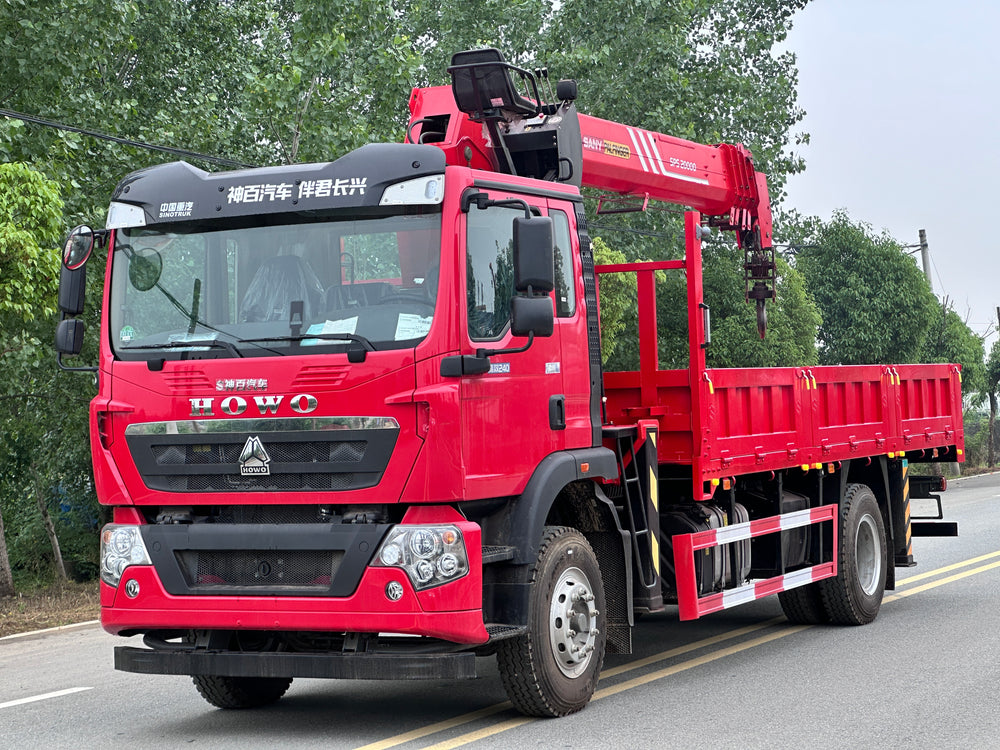

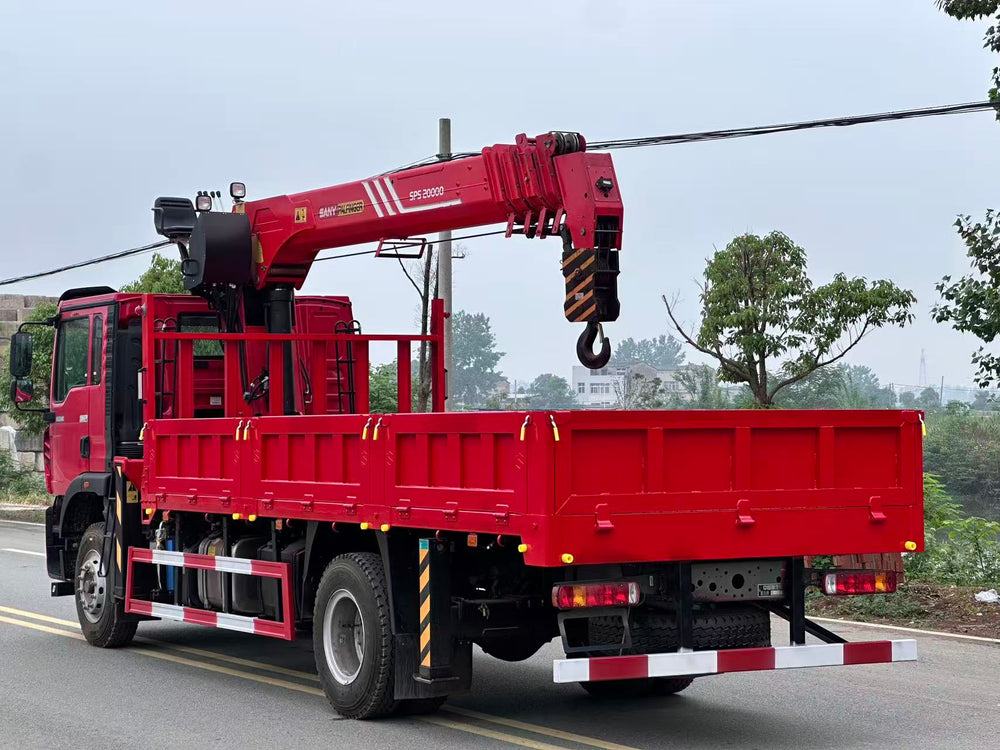

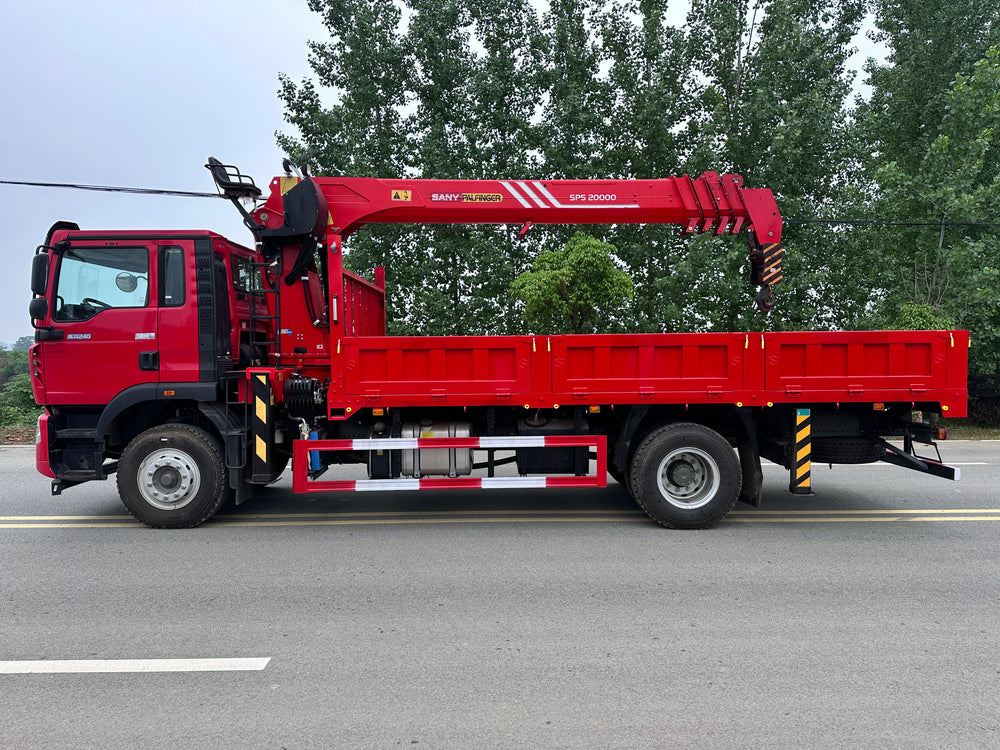

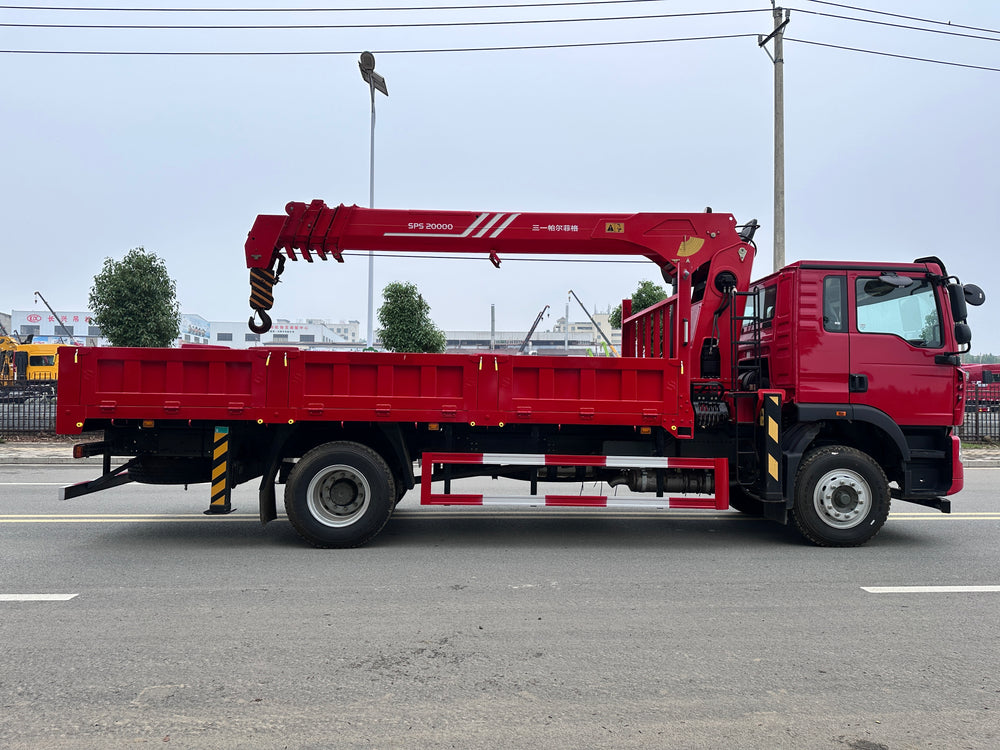

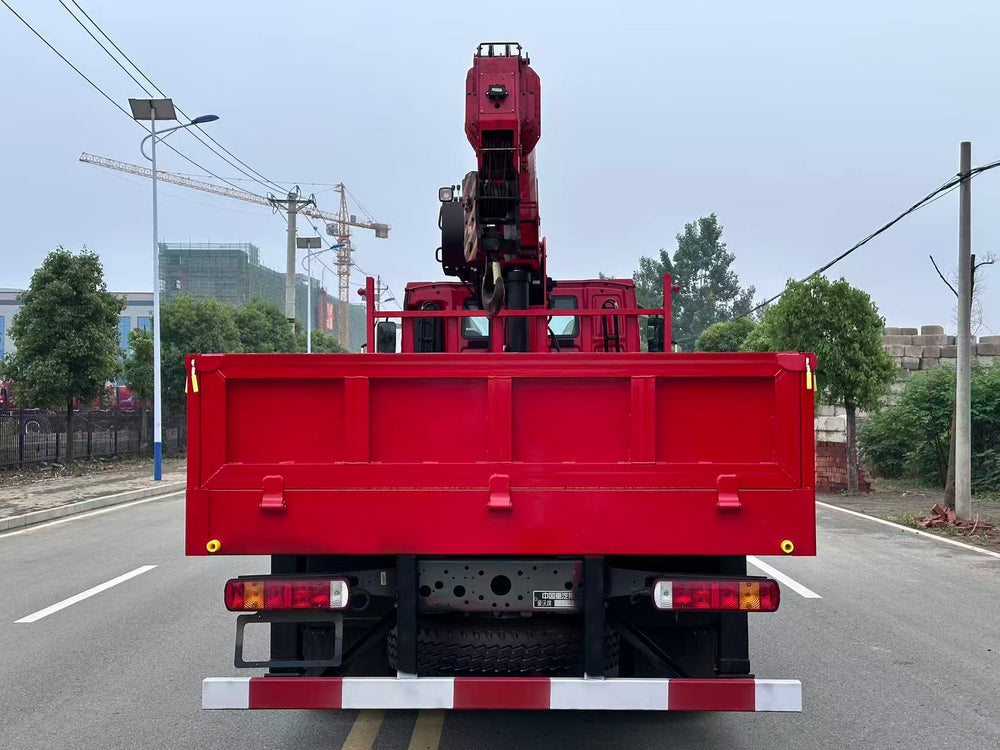

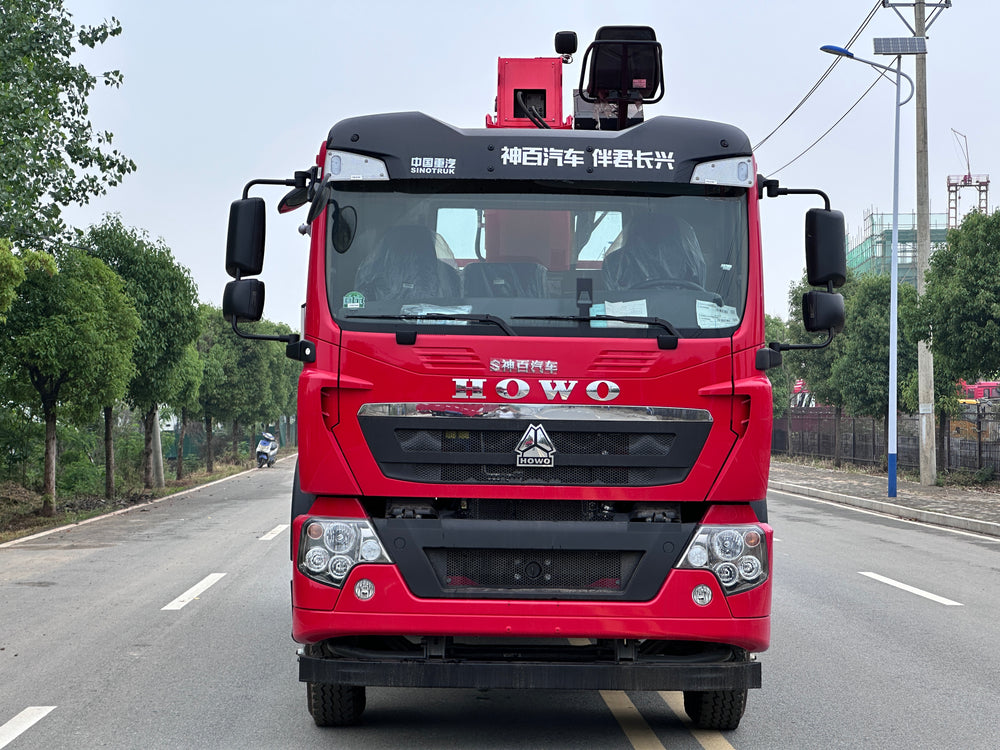

HOWO Palfinger8T 5Section Telescopic Boom Crane

1 / 8

Request a Quote Now

Item	Specification
Engine	Weichai WP4.6NQ240E62, 240HP, 4.58L displacement
Wheelbase	5000mm
Final Drive Ratio	5.29 (Optional:4.63)
Transmission & PTO	HW95508STC2 8-speed synchromesh gearbox + HW45ZC flange-type PTO
Front & Rear Axle	7.5t front axle, 13t engineering rear axle
Frame	3-layer reinforced frame (8+4+4/300)
Leaf Spring	10 pieces front / 9+8 pieces rear
Tyre	10.00R20, mixed tread, 18PR

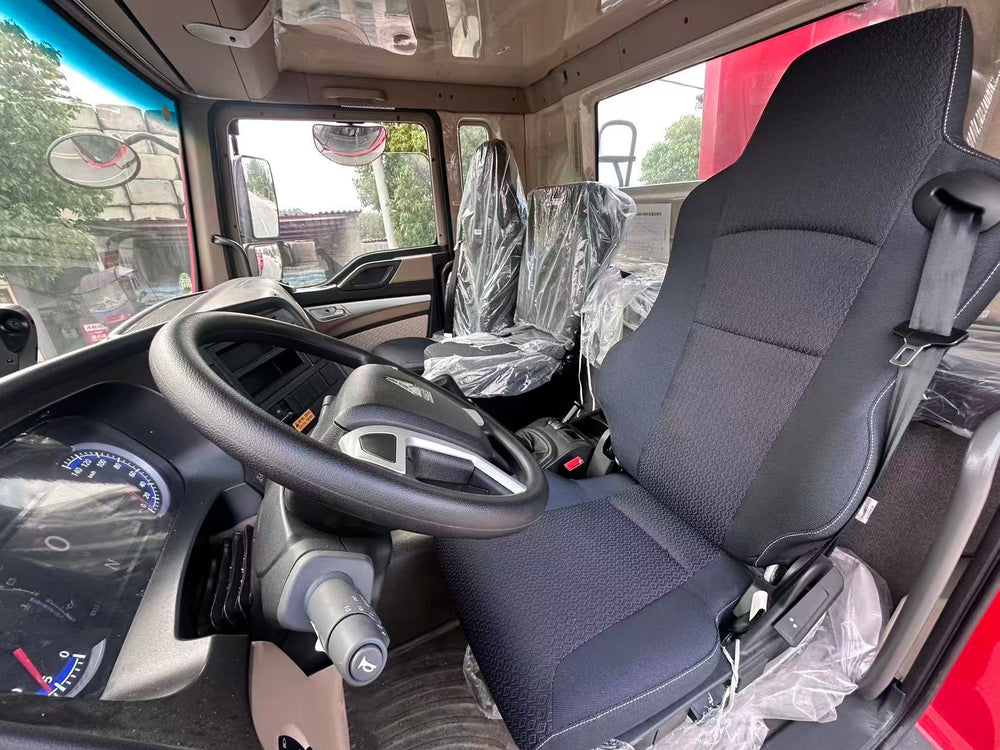

Cab & Interior	HOWO TX-D short cab; multi-function steering wheel; electric adjustable & heated rearview mirror; 10.1" full HD MP5 screen with sunshade; main air suspension seat + auxiliary basic seat; middle cab seat
Chassis Equipments	Cab spring shock absorber; highway intake system; max speed 89km/h; ABS(4S/4M); full-metal middle bumper; 200L aluminum fuel tank; cable-type PTO; CNHTC Intelligent D Version; mechanical power switch; 120AH storage battery
Vehicle Advantages	Integrated engine-transmission-axle design; 4-point suspended collapsible MAN safety cab; multi-adjustable air seat with lumbar support; reinforced leaf springs & four U-bolts; high torsional resistance for rough roads
Crane Unit	Sany 8t 5-section crane, boom length 17.4m; top operation, synchronous extension, single slewing, single-stage outrigger, radiator & automatic hook retraction
Cargo Box	5.9m edge-three-bottom-five cross-member engineering cargo compartment
