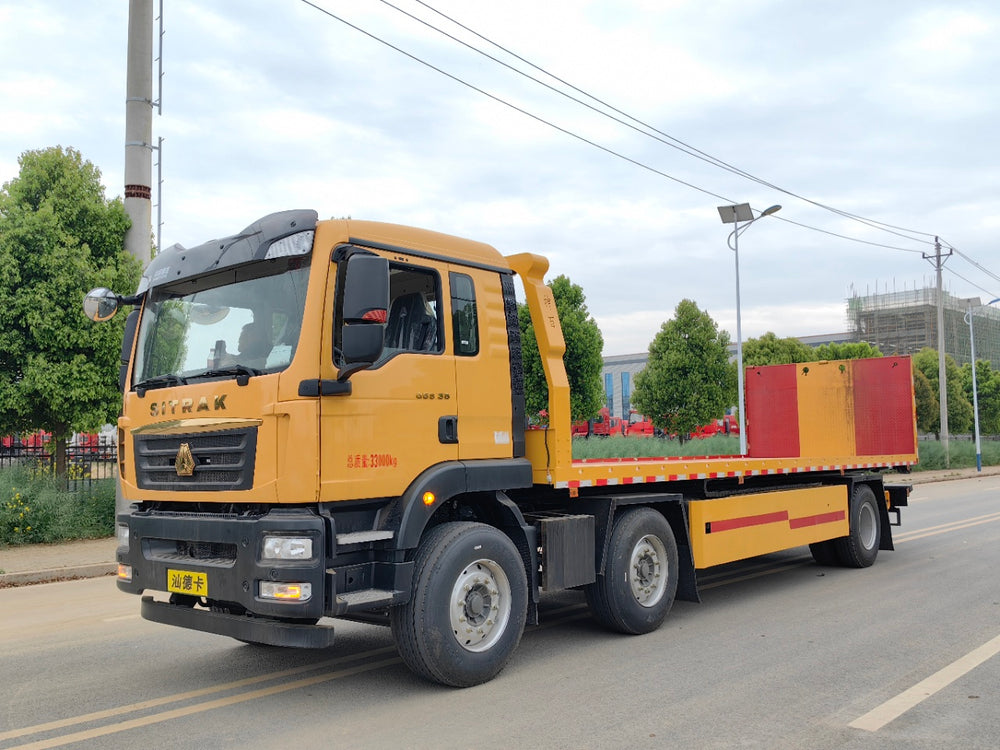

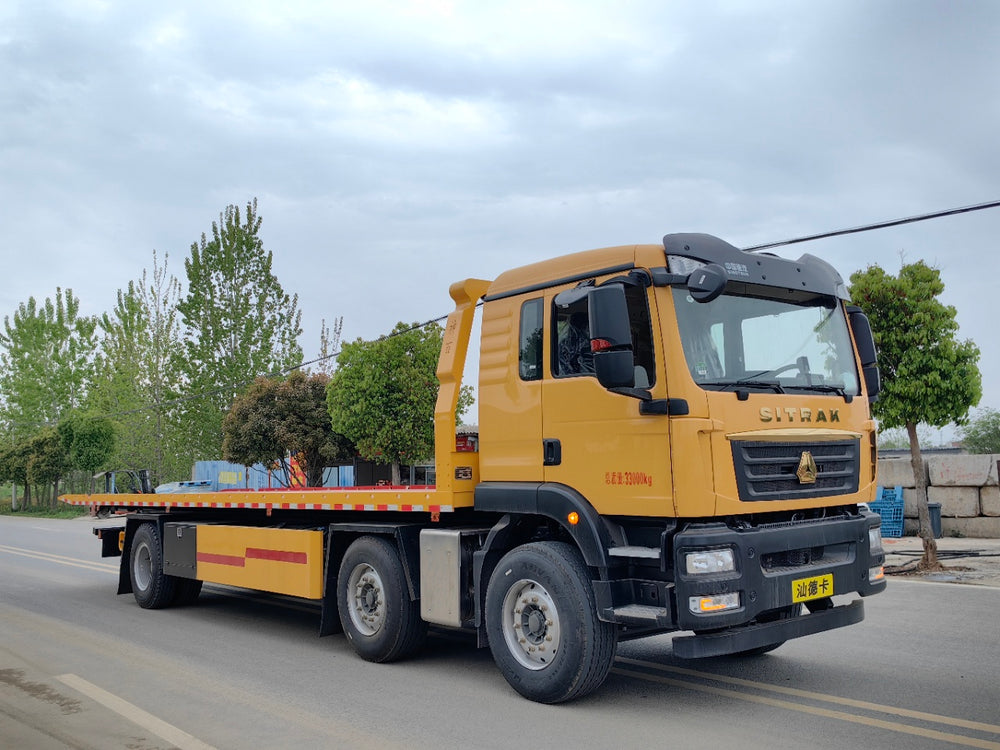

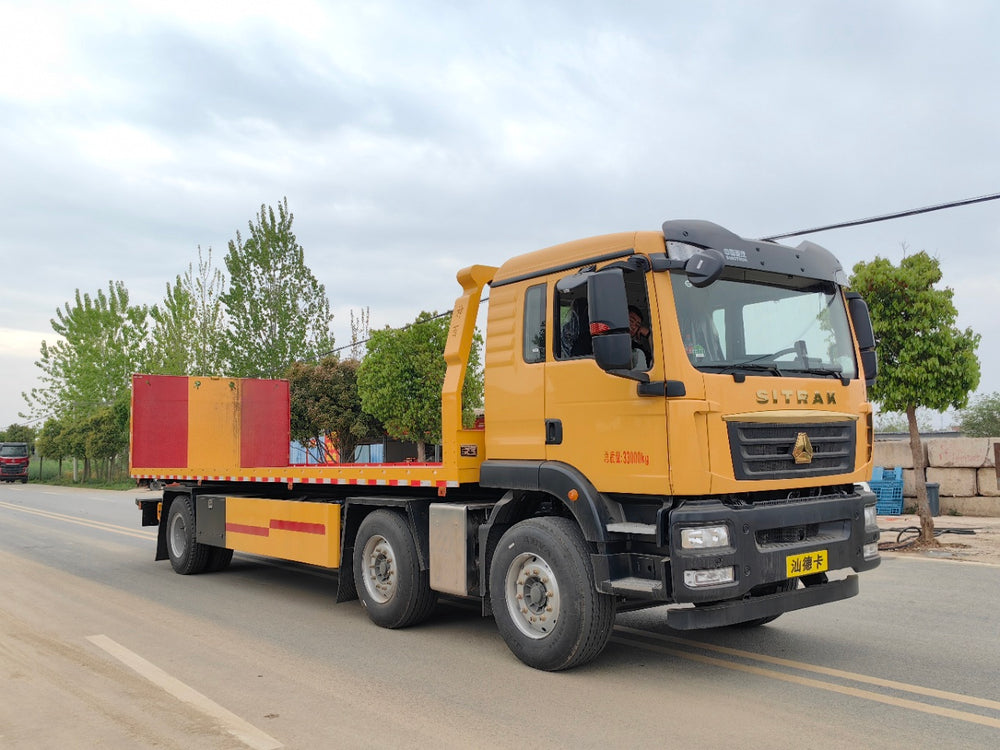

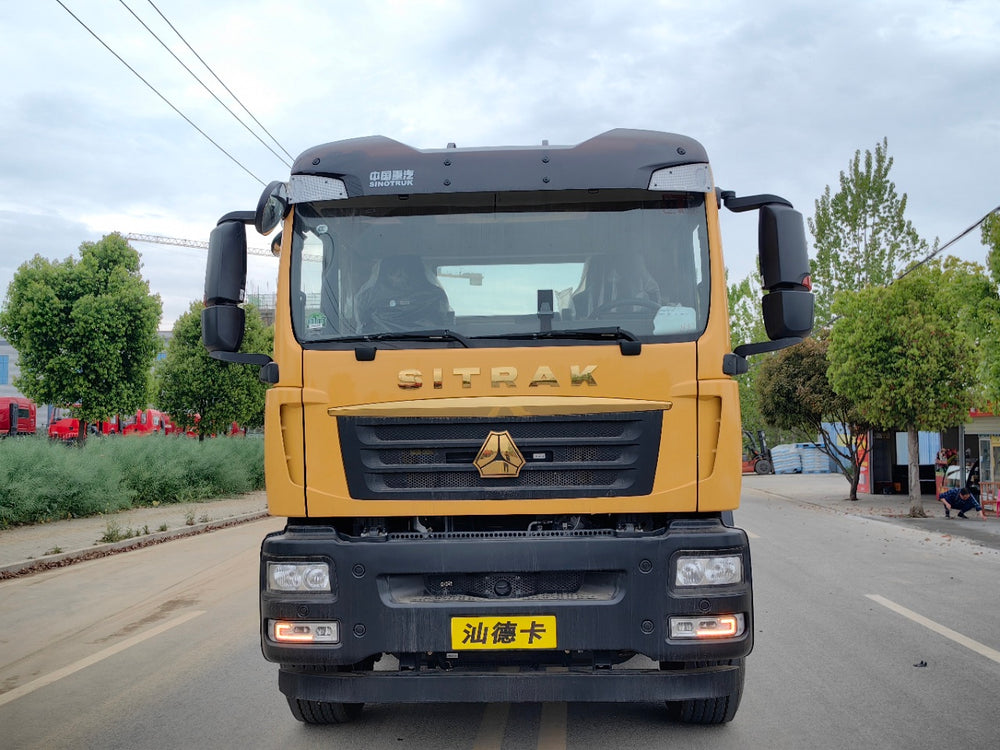

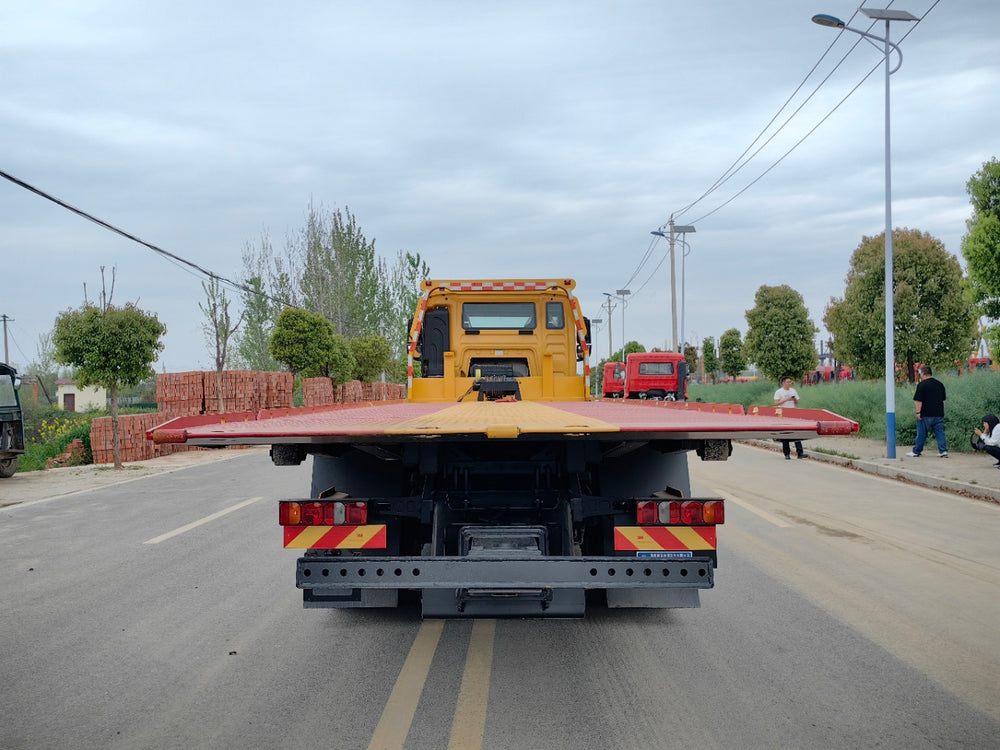

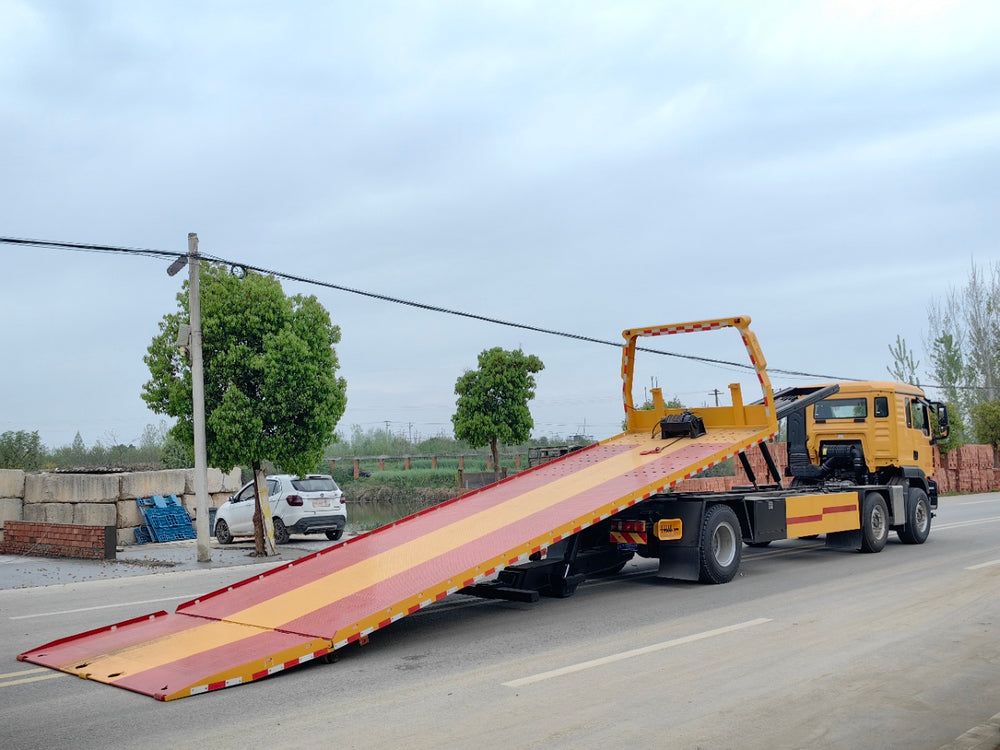

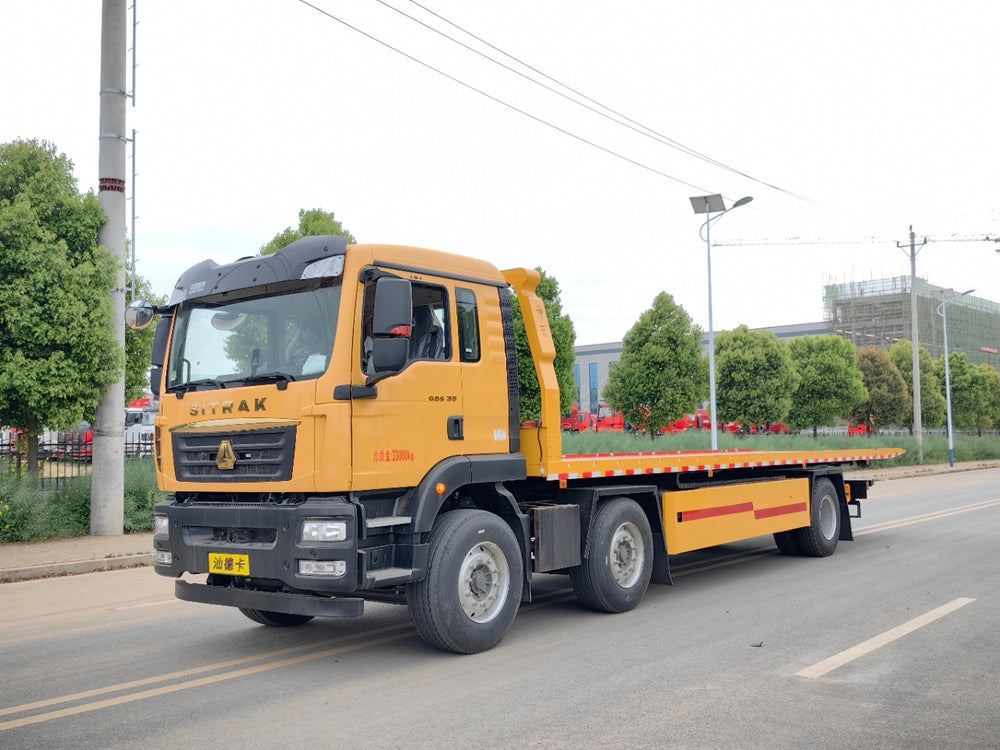

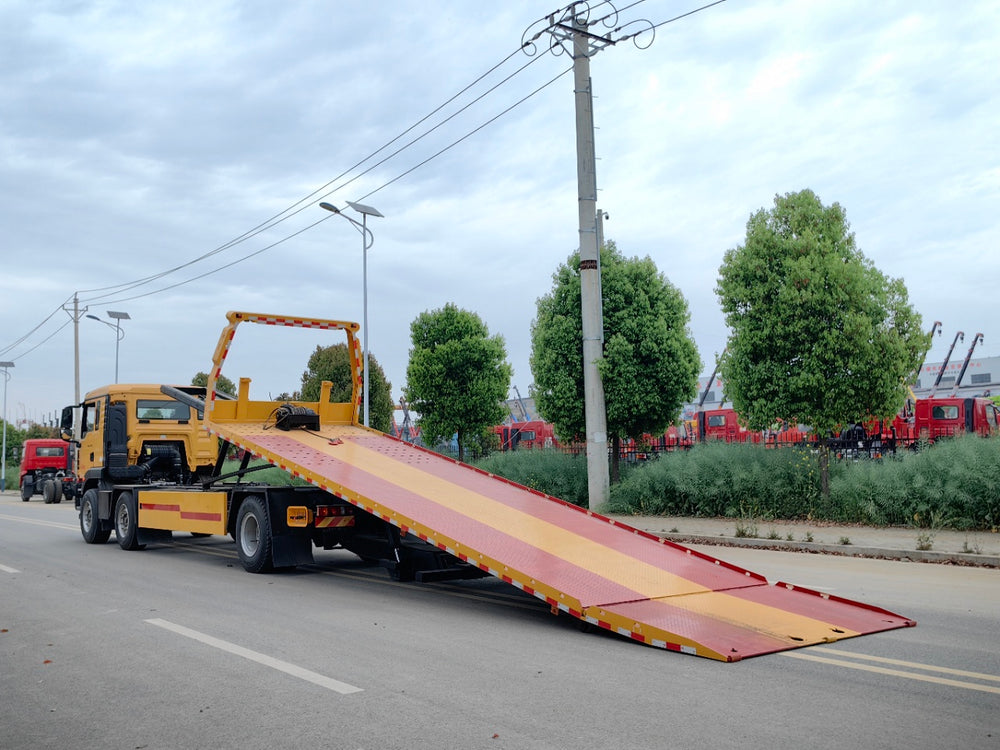

SITRAK 15T 350HP Wrecker Truck

1 / 11

Parameter	Value
Chassis Configuration
Chassis Model	CNHTC High-end Gold Label SITRAK Chassis
Engine	3rd Generation MAN Technology 350HP Engine
Gearbox	CNHTC 12-speed Gearbox with Overdrive
Axle	9.5t Front Axle / 12t Rear Axle (both with German MAN Technology)
Tires	385 Tubeless Tires (Front), 1100 Steel Wire Tires (Rear)
Frame	Original Factory Full-length 3-layer Girder (8+8+6)
Driver Seat	Driver's Airbag Aviation Seat (Multi-adjustable)
Rearview Mirrors	Heated Rearview Mirrors with Electric Adjustment
Lighting	Automatic Headlights

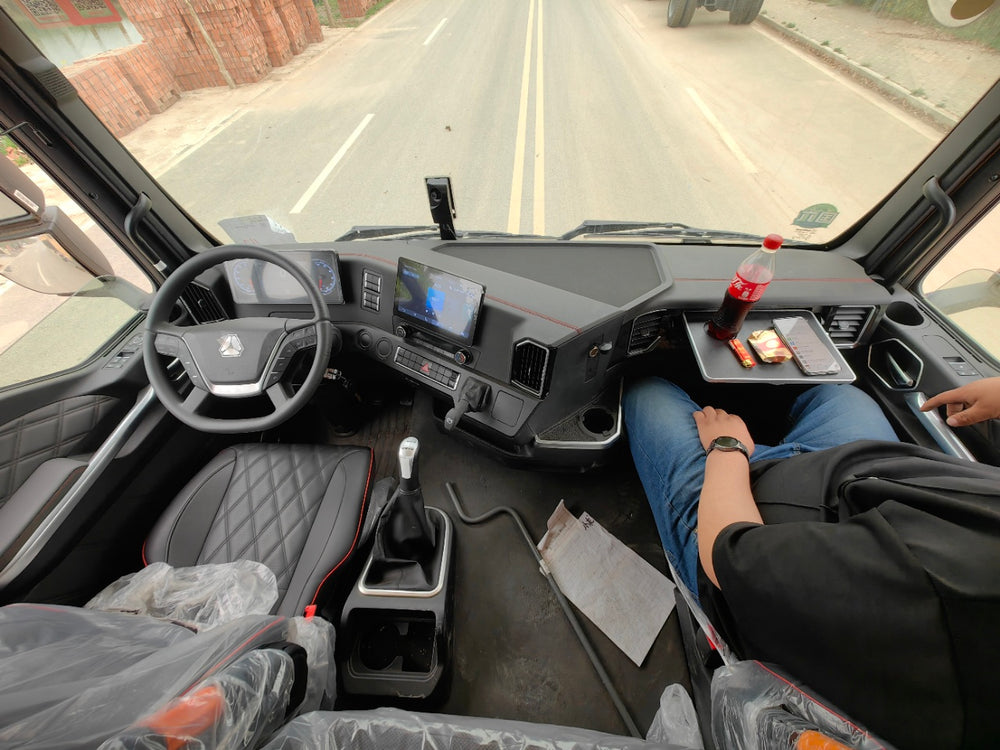

Central Control	Large Central Control Screen
Co-pilot & Interior	Co-pilot Small Table, Manual Sun Visors for Driver & Co-pilot
Upper Body Configuration
Upper Body Type	18-ton One-tow-two Upper Body
Manufacturing Process	Sunken Process (effectively lowers flatbed center of gravity)
Flatbed Dimensions	Overall Length ~10.15m, Width 2.55m
Flatbed Floor	8mm Thick High-strength Wear-resistant Checkered Plate
Body Structure	Densified Dragon Frame, Grid Welding, Densified Diagonal Bracing, Reinforced Auxiliary Beam
Operation Device	Bilateral Linkage Operation Device
Slideway	Double-layer 12+12mm Thick Slideway (with square tube & large triangle reinforcement)
Winch	15-ton Central-mounted Winch
Rear Tow Arm	18-ton 3-section Rear Tow Arm
Hydraulic Valve	Italy Imported Haide Hydraulic Valve

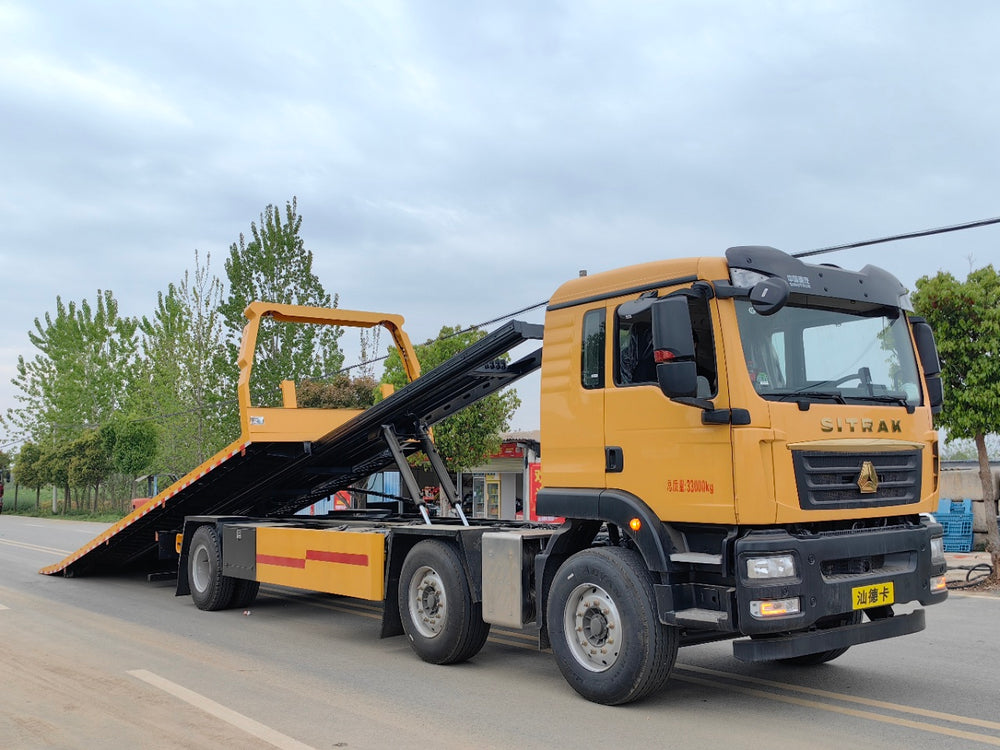

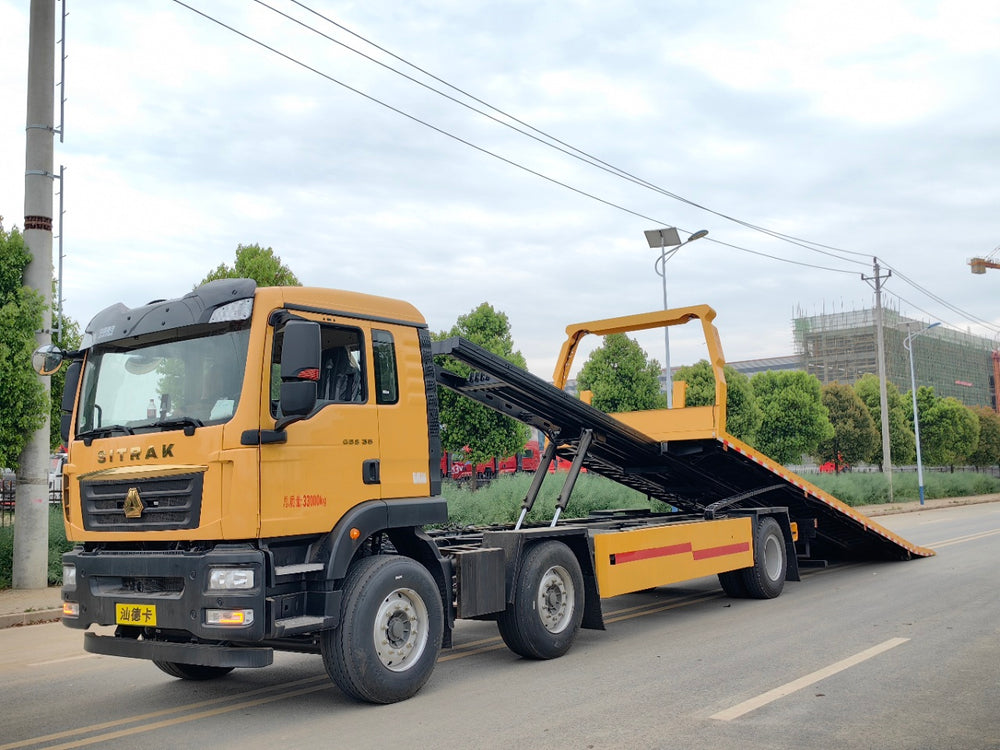

Oil Cylinder	Double Flatbed Telescopic Oil Cylinders
Overall Curb Weight	17.1t (excluding auxiliary accessories)
On-board Accessories
Wheel Chocks	1 Pair of Triangle Wheel Chocks
Binding Belts	6 Pieces of High-quality Binding Belts
Tow Fork Bases	1 Pair of Tow Fork Bases
Tow Forks	3 Pairs of Tow Forks (1 Pair each for High/Medium/Low)
Wheel Holding Tubes	1 Pair of Square Wheel Holding Tubes
L-shaped Forks	1 Pair of L-shaped Forks
